Genuine OEM Grasshopper® Mower Parts Diagrams
928D • Seat Assembly
1995

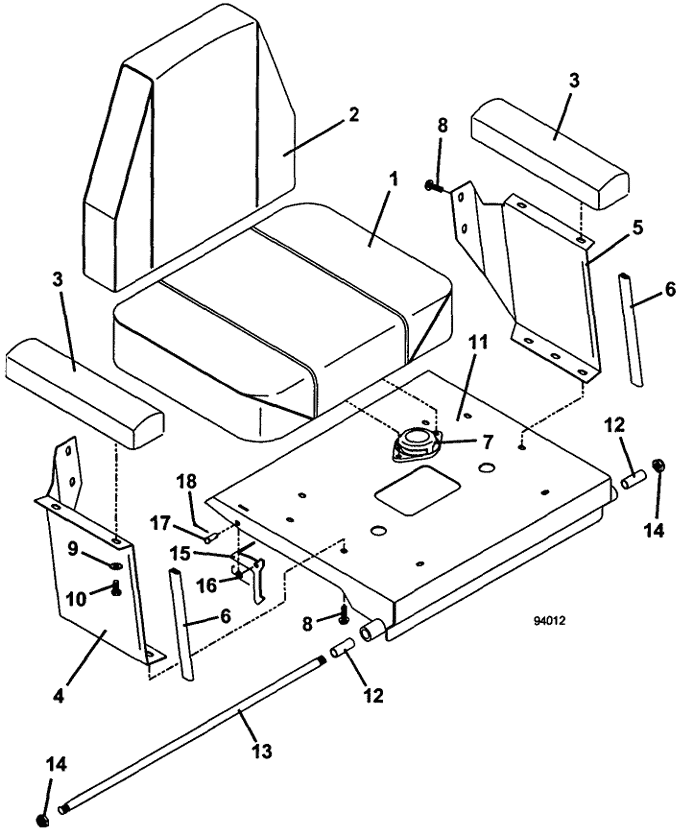

Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
Formed Seat Cushion |
321515 |
2 |
Back Cushion |
321511 |
3 |
Seat Armrest |
321501 |
4 |
right Seat Side Member |
724310 |
5 |
left Seat Side Member |
724311 |
6 |
Seat Edge Trim |
822630 |
7 |
Seat Switch |
183870 |
8 |
Hex Flange Whiz Bolt |
253193 |
9 |
External Star Washer |
257410 |
10 |
Hex Bolt |
243195 |
11 |
928 Seat W/A |
643911 |
12 |
Nylon Bearing |
422615 |
13 |
700 Foot Platform Pivot Rod |
780673 |
14 |
Nylon Insert Nut |
253470 |
15 |
Seat Latch |
724112 |
16 |
Torsion Spring |
284408 |
17 |
Clevis Pin |
261278 |
18 |
Cotter Pin |
260648 |
19 |
928 Seat Assembly |
603759 |
