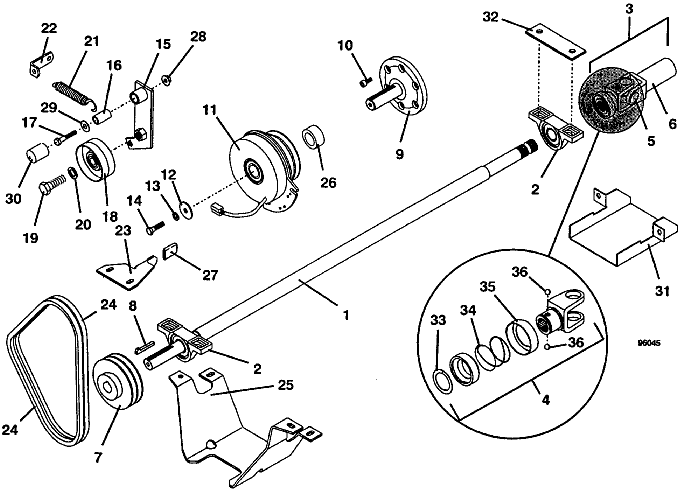

Item # |
Description |
Part Number |
1 |
Power Shaft |
643730 |
2 |
Bearing Pillow Block 1 SC |
122044 |
3 |
Un Half Sleeve |
398914 |
4 |
Yoke Splined QD |
401019 |
5 |
Cross & Bearing |
121010 |
6 |
Yoke w/Sleeve |
401015 |
7 |
Sheave |
415620 |
8 |
Gib Key .25 x 1.5 |
281588 |
9 |
Shaft - Clutch Stub |
824641 |
10 |
Hex HD |
271120 |
11 |
Clutch Assy - 928D |
604183 |
12 |
Washer - Retainer |
883803 |
13 |
Washer Lock |
257412 |
14 |
Hex Bolt .375-24 x 1.250 GR 8 |
243337 |
15 |
Idler Arm - PTO 928 |
824497 |
- |
Bearing Oilite .752 x .879 x .500 |
121758 |
16 |
Bearing Pivot Shaft |
881105 |
17 |
Hex Bolt .375-16 x 2.500 |
243355 |
18 |
Idler |
393175 |
19 |
Hex Bolt .625-11 x 1.750 |
243805 |
20 |
Washer Lock |
257452 |
21 |
Spring Extension W/Swivel |
283819 |
22 |
Spring Bracket - Idler 928 |
732524 |
23 |
BRKT - Anti-Rotation 928 |
725102 |
24 |
Belt |
381914 |
25 |
Guard - Sheave 900 |
725303 |
26 |
Spacer |
902589 |
27 |
Cover Clutch Bracket |
422088 |
28 |
Nut Whiz .375-16 |
253043 |
29 |
Washer |
257040 |
30 |
Cap Vinyl 1.125 ID |
422098 |
31 |
Shield - PTO Shaft |
729287 |
32 |
Spacer - Front Bearing 928 |
901319 |
33 |
Retainer External |
263660 |
34 |
Spring Extension |
283525 |
35 |
Spring Cover - QD Yoke |
422980 |
36 |
Ball Steel |
300014 |
