928D • Tractor Assembly

1997

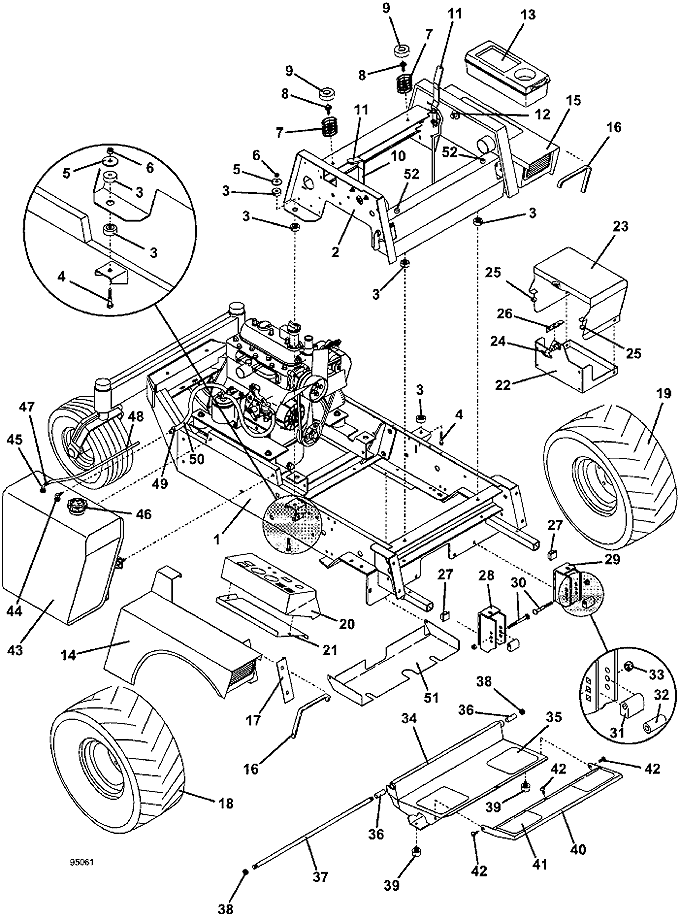

Tractor Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

928 Lower Frame

643826

2

97 Upper Frame

643869

3

Step Bushing

257037

4

Hex Bolt

243220

5

Washer

774020

6

Nut with Nylon Insert

253450

7

Compression Spring

283516

8

Flange Whiz Bolt

253203

9

Seat Spring Cap

422127

10

Throttle Assembly

603856

-

Control Cable Assembly

323640

-

Throttle Lever Stop

722009

11

Handle Grip

422150

12

Spacer

902280

13

Tool Box

422040

14

700/900 right Fender with Safety Decal

693210

-

928D right Trim Decal

163370

15

700/900 left Fender with Safety Decal

693211

-

928D left Trim Decal

163371

16

700/900 Fender Edge Trim

822635

17

right Fender Cover Panel

722062

18

21 x 11 x 8 right Wheel & Bar Tread Tire

483930

-

21 x 11 x 8 Bar Tread Tire

482478

-

5-Bolt 8 x 9.125 Wheel

483415

19

21 x 11 x 8 left Wheel & Bar Tread Tire

483931

-

21 x 11 x 8 Bar Tread Tire

482478

-

5-Bolt 8 x 9.125 Wheel

483415

20

Console with Decal for Liquid Cooled Diesel model

693104

21

96 Console Filler Panel

721152

22

Contour Battery Box Assembly

603105

23

Battery Box Lid Assembly

603570

24

Rubber Draw Latch

281301

25

Rubber Bumper

424029

26

Bolt On Battery Clamp

723017

27

1" (Internal Dimension) Square Plastic Plug

422065

28

700/900 right Quick Disconnect Deck Mount

643092

29

700/900 left Quick Disconnect Deck Mount

643093

30

Special Carriage Bolt

247280

31

Deck Mount Bushing

282575

32

Floating Deck Mount Bushing

282576

33

Nut with Nylon Insert

253460

34

700/900 Adjustable Foot Platform Assembly

604346

35

Foot Rest Tread

420905

36

Nylon Bearing

422615

37

Foot Rest Pivot Rod

780673

38

Nylon Insert Nut

253470

39

Rubber Bumper

424052

40

700 Foot Platform Extension

603301

41

Foot Rest Tread Extension

420904

42

Carriage Bolt

247130

43

8 Gal Diesel Fuel Tank with Decal

693234

44

Fuel Tube

101837

45

Fuel Tube

101835

46

Cap with Fuel Level

141130

47

Spring Clamp Hose

280260

48

Fuel Line Return Hose

821740

49

Hose Clamp

280270

50

Fuel Line Hose

821716

51

Hydro Fan Screen

721243

52

Rubber Bumper

424015

53

928D Decal Set

603276

return to 928D index return to top of page
