grasshopper

9548
48" Deck

Year Model: 2000

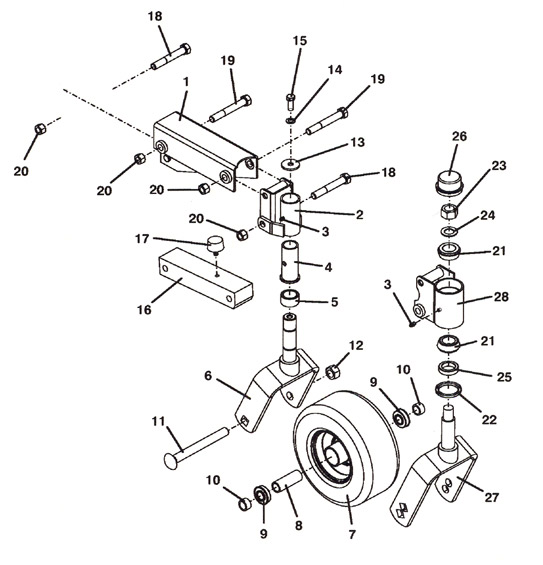

Wheel Lift Assembly


Click On The Part Number For Details

Item #

Description

Part Number

1

Lift Channel - Upper Right

643500

-

Lift Channel - Upper Left

643501

2

Fork Mount w/Bearing - Right

603351

-

Fork Mount w/Bearing - Left

603352

3

Grease Fitting

280776

4

Flanged Bearing

833260

5

Spacer

282629

6

Deck Fork w/O Rings

604350

-

O Ring

425514

7

Wheel & Tire - Flat Proof w/Bearings & Spacer

603971

8

Wheel Bearing Spacer

902473

9

Ball Bearing

120050

10

Axle Spacer

902415

11

Carriage Bolt

247715

12

Lock Nut

253970

13

Washer

774014

14

Lock Washer

257412

15

Bolt

243331

16

Stabilizer - Deck Lift

822312

17

Rubber Bumper

424052

18

Bolt

243609

19

Bolt

243614

20

Lock Nut

253930

21

Bearing - Tapered (HD Option)

122522

22

Seal (HD Option)

125855

23

Lock Nut (HD Option)

253992

24

Washer (HD Option)

247091

25

Spacer (HD Option)

282615

26

Dust Cap (HD Option)

481432

27

Fork (HD Option)

644221

28

Fork Housing - Right (HD Option)

824982
