grasshopper

9552
52 " Deck

Year Model: 1997

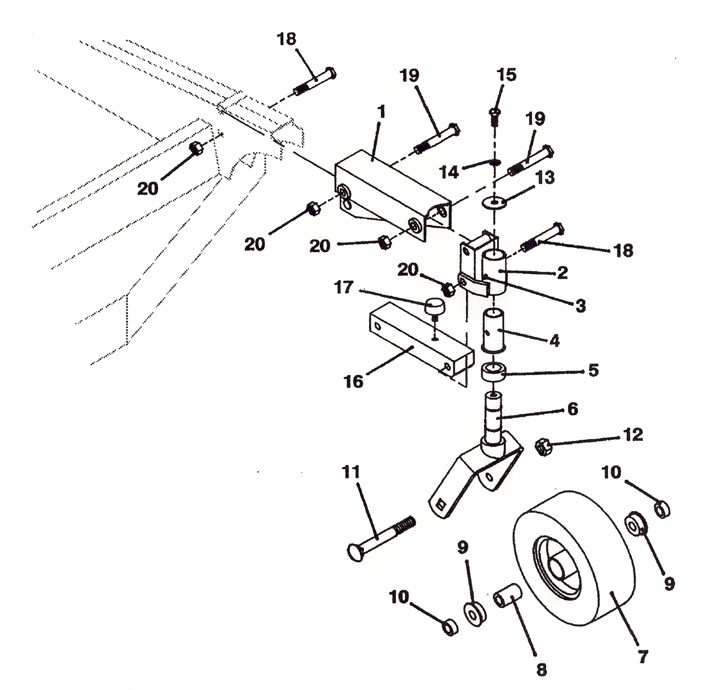

Wheel Lift Assembly


Click On The Part Number For Details

Item #

Description

Part Number

1

Lift Channel - Upper Right

643500

-

Lift Channel - Upper Left

643501

2

Fork Mount w/Bearing - Right

603351

-

Fork Mount w/Bearing - Left

603352

3

Grease Fitting

280776

4

Flanged Bearing

833260

5

Spacer

902541

6

Deck Fork w/O Rings

604350

-

O Ring

425514

7

Wheel & Tire - Flat Proof w/Bearings & Spacer

603971

8

Wheel Bearing Spacer

902473

9

Ball Bearing

120050

10

Axle Spacer

902415

11

Carriage Bolt

247715

12

Lock Nut

253970

13

Washer

774014

14

Lock Washer

257412

15

Bolt

243331

16

Stabilizer - Deck Lift

822312

17

Rubber Bumper

424052

18

Bolt

243609

19

Bolt

243614

20

Lock Nut

253930
