grasshopper

9552
52 " Deck

Year Model: 1998

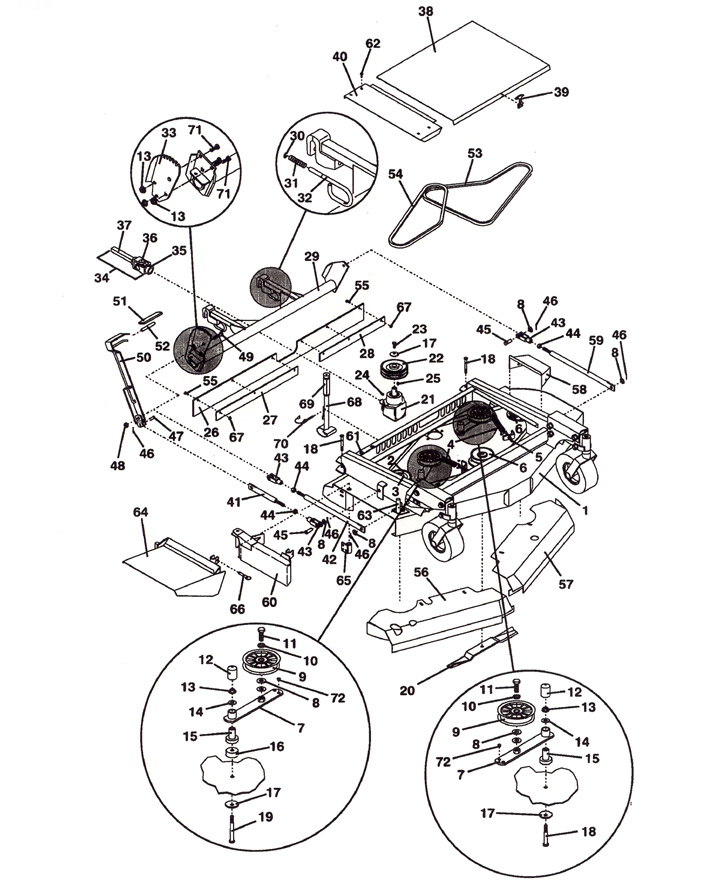

Mower Assembly


Click On The Part Number For Details

Item #

Description

Part Number

1

Deck Weldment

603287

2

Sheave

415867

3

Spacer

282630

4

Extension Spring w/Swivel

283820

5

Idler Adjustment J Bolt

730391

6

Sheave

414696

7

Idler Arm w/Bearing (includes items 15 & 72)

824502

8

Washer

257062

9

Idler

393225

10

Lock Washer

257432

11

Bolt

243565

12

Vinyl Cap

422098

13

Whiz Nut

253043

14

Flat Washer

257040

15

Bearing Pedestal

121650

16

Spacer - Idler Arm

902317

17

Cupped Washer

257041

18

Bolt

243565

19

Bolt

243385

20

Blade 18 Inch - Medium Lift (Uses 3)

320236

-

Blade 18 Inch - Notched High Lift (Uses 3)

320239

-

Blade 18 Inch - Contour (Uses 3)

320238

21

Gear Box Right Angle CCW

390024

22

Sheave

416130

23

Bolt

243331

24

Woodruff Key

281833

25

Woodruff Key

281828

26

Deck Flap

424193

27

Deflector Strap - Right

782595

28

Deflector Strap - Left

782568

29

Lift Arm

603577

30

External Retainer

263490

31

Spring

283285

32

Deck Mount Latch Pin

730433

33

  Lever Mount

726100

34

Half Shaft Assembly

398525

35

Yoke

401010

36

Cross & Bearing

121010

37

Yoke & Shaft

402605

38

Belt Shield Assembly

604724

39

Rubber Draw Latch

281301

40

Belt Shield - Right

722281

41

Linkage Assembly - Lift Lever (Includes 43&44)

603562

42

Linkage Arm - Right (Includes 43&44)

603572

43

Clevis Yoke

265565

44

Jam Nut

254493

45

Clevis Pin

261426

46

Cotter Pin

260650

47

Clevis Pin

261346

48

Lock Nut

253930

49

Bolt

243580

50

Deck Lift Lever

643529

51

Handle Grip

422155

52

Handle Grip

422158

53

Belt

382840

54

Belt

382810

55

Whiz Bolt

253177

56

Front Shroud - Right - Optional

643192

57

Front Shroud - Left - Optional

643193

58

Belt Shield - Left

722249

59

Linkage Arm - Left (Includes Items 43 & 44)

603573

60

Discharge Restriction Plate - Optional

643691

61

Speed Nut

254431

62

Whiz Bolt

253173

63

Clevis Shaft

643235

64

Discharge Shield

644751

65

Pivot Mount

643632

66

Hitch Pin

260400

67

Whiz Nut

253025

68

Deck Stand (Includes Item 69)

603808

69

Handle Grip

422175

70

Linchpin

261624

71

 Bolt

243330

72

Nylon Bearing

422520

-

Decal Set - Mower Safety

603280
