Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

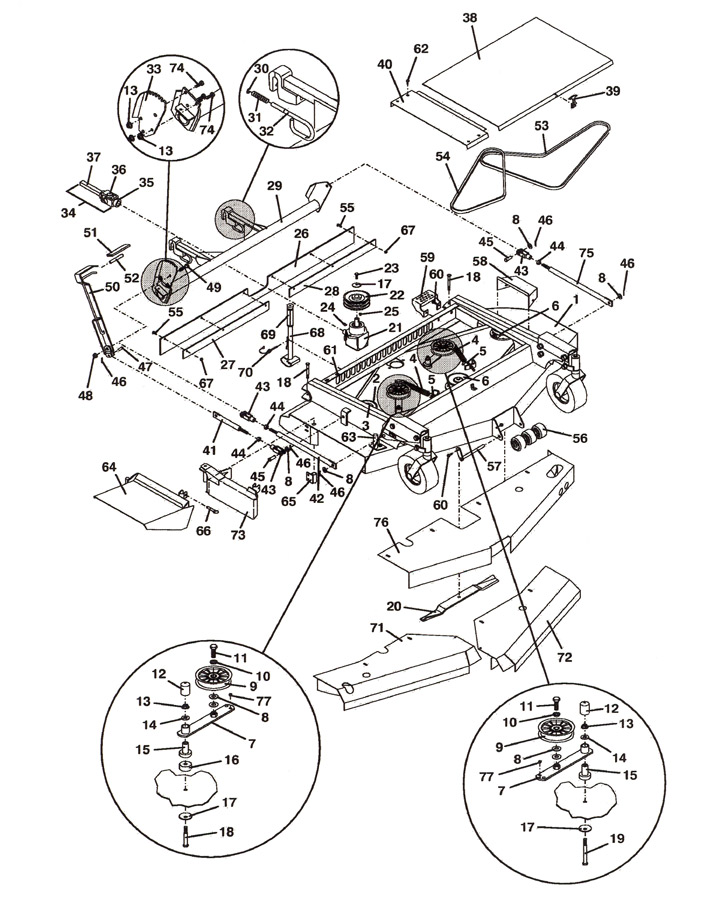

9561 • Mower Assembly

2001

Mower Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Deck Weldment

603288

2

Sheave

415867

3

Spacer

282630

4

Extension Spring w/Swivel

283820

5

Idler Adjustment J Bolt

730391

6

Sheave

414696

7

Idler Arm w/Bearing & Pedestal (includes item 15)

824502

8

Washer

257062

9

Idler

393225

10

Lock Washer

257432

11

Bolt

243565

12

Vinyl Cap

422098

13

Whiz Nut

253043

14

Flat Washer

257040

15

Bearing Pedestal

121650

16

Spacer - Idler Arm

902317

17

Cupped Washer

257041

18

Bolt

243565

19

Bolt

243385

20

Blade 21 Inch - Medium Lift (Uses 3)

320242

-

Blade 21 Inch - Notched High Lift (Uses 3)

320245

-

Blade 21 Inch - Contour (Uses 3)

320244

21

Gear Box Right Angle CCW

390024

22

Sheave

416116

23

Bolt

243331

24

Woodruff Key

281833

25

Woodruff Key

281828

26

Rubber Deflector

424194

27

Deflector Strap - Right

782598

28

Deflector Strap - Left

775208

29

Lift Arm

603559

30

External Retainer

263490

31

Spring

283285

32

Deck Mount Latch Pin

730433

33

Upper Lever Mount

726100

34

Half Shaft Assembly

398525

35

Yoke

401010

36

Cross & Bearing

121010

37

Yoke & Shaft

402605

38

Belt Shield Assembly

604728

39

Rubber Draw Latch

281301

40

Belt Shield - Right

722322

41

Linkage Assembly - Lift Lever (Includes 43&44)

603562

42

Linkage Arm - Right (Includes 43&44)

603568

43

Clevis Yoke

265565

44

Jam Nut

254493

45

Clevis Pin

261426

46

Cotter Pin

260650

47

Clevis Pin

261346

48

Lock Nut

253930

49

Bolt

243580

50

Deck Lift Lever

643529

51

Handle Grip

422155

52

Handle Grip

422158

53

Belt

382865

54

Belt

382025

55

Whiz Bolt

253177

56

Roller (3 Required)

426122

57

Roller Pin

644512

58

Belt Shield - Left

722249

59

Step

729283

60

Whiz Bolt

253192

-

Whiz Nut

253035

61

Speed Nut

254431

62

Whiz Bolt

253173

63

Clevis Shaft

643235

64

Discharge Shield

644751

65

Pivot Mount

643632

66

Hitch Pin

260400

67

Whiz Nut

253025

68

Deck Stand (Includes Item 69)

603808

69

Handle Grip

422175

70

Linchpin

261624

71

Front Shroud - Right (Optional)

643190

72

Front Shroud - Left (Optional)

643191

73

Discharge Restriction Plate (Optional)

643691

74

Bolt

243330

75

Linkage Arm - Left (Includes 43&44)

603571

76

Air Foil

644195

77

Nylon Bearing

422520

-

Decal Set - Mower Safety

603280
