grasshopper

9652
52 " Deck

Year Model: 2001

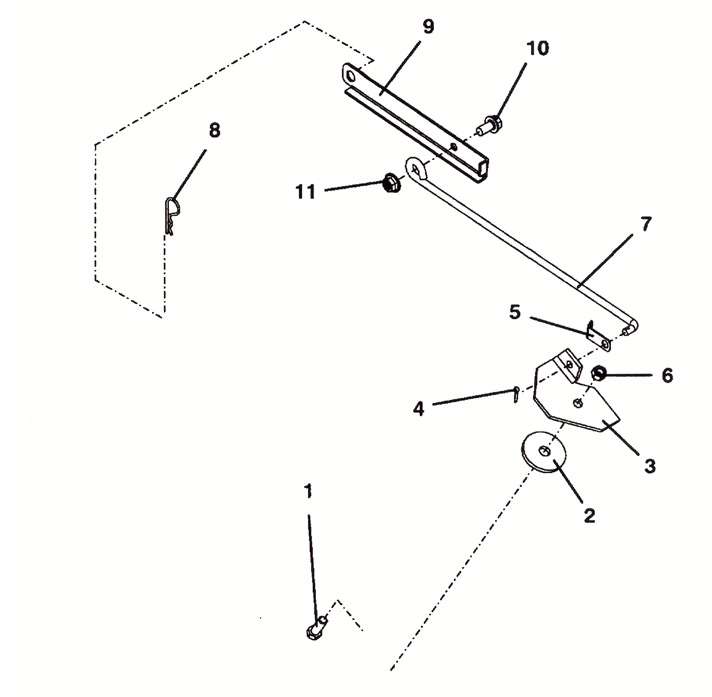

Stabilizer Rod Assembly


Click On The Part Number For Details

Item #

Description

Part Number

1

Bolt

243330

2

Fiber Washer

421200

3

Plate - Rod Mount

725020

4

Cotter Pin

260648

5

Clip

720121

6

Lock Nut

253890

7

Stabilizer Rod

321275

8

Hair Pin

260523

9

*Extension Strap

754029

10

*Bolt

253200

11

*Nut

253043

* Only Used On 9644 and 9648 Mower Equipped With A
Grass Catcher Vacuum Assembly.
