Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

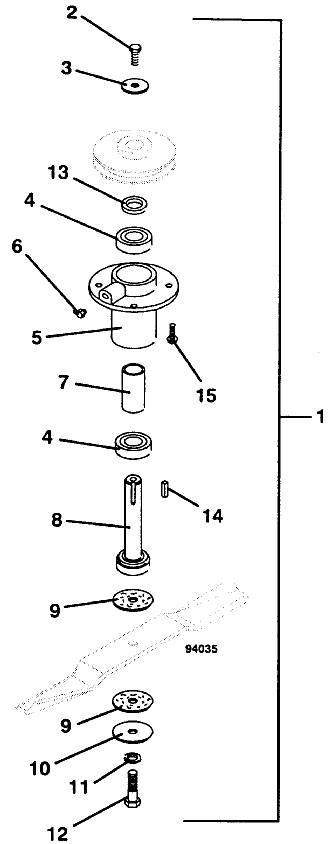

9661 • Blade Spindle Assembly

1999

Blade Spindle Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

right Blade Spindle Assembly (includes items 2 - 13 and 15)

623784

-

left/center Blade Spindle Assembly (includes items 2 - 13 and 15)

623783

2

Hex Bolt

243331

3

Cupped Washer

257041

4

Single Seal Ball Bearing

110082

5

Spindle Grease Housing

320526

6

Zerk Grease Fitting

280734

7

Bearing Tube Spacer

903640

8

right 25mm Spindle Shaft Assembly

604770

-

left/center 25mm Spindle Shaft Assembly

604768

9

Fiber Washer

421200

10

Washer

257061

11

Lock Washer

257432

12

Hex Bolt

243581

13

Spacer

282607

14

Square Key for right Spindle

281580

-

Square Key for left & center Spindles

281583

15

Hex Flange Whiz Bolt

253192
