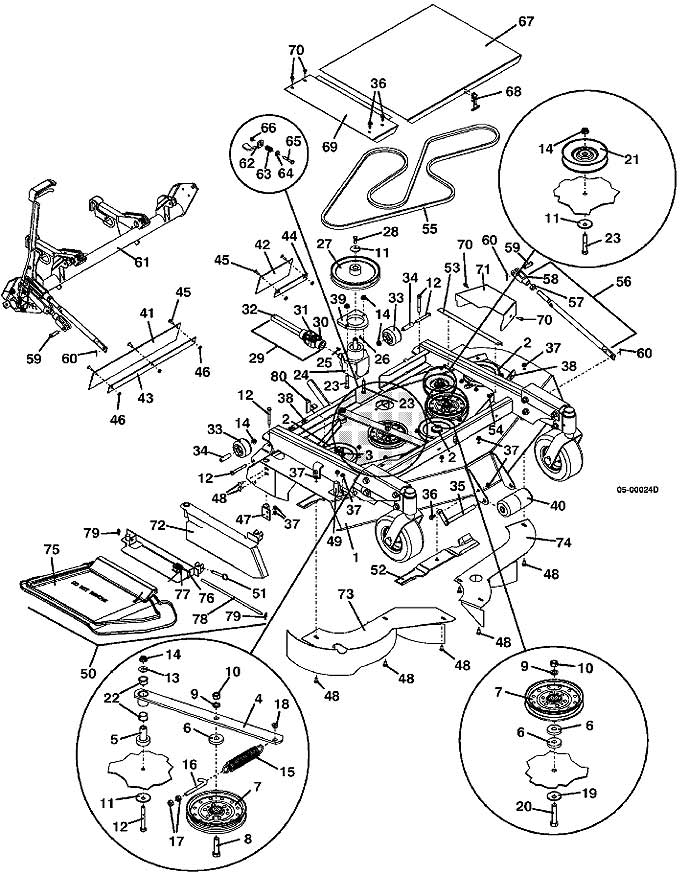

Mower Assembly • Grasshopper 9852 Deck

2003

Mower Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

9852 Mower Deck Weldment

644142

2

Sheave

415892

3

Spacer

282630

4

9852 Idler Arm

824489

5

Pedestal Bearing

121650

6

Washer

883804

7

Idler

393250

8

Hex Bolt

243580

9

Lock Washer

257432

10

Nut

254470

11

Cupped Washer

257041

12

Hex Bolt

243365

13

Washer

257040

14

Whiz Nut

253043

15

Extension Spring

283848

16

Idler Adjustment J Bolt

730391

17

Nut

254450

18

Nylon Bearing

422520

19

Washer

257059

20

Hex Bolt

243590

21

Idler

393376

22

Oilite Bearing

121756

23

Hex Bolt

243350

24

Right Angle Counter-Clockwise Gearbox

390024

25

Woodruff Key

281833

26

Woodruff Key

281828

27

Sheave

415895

28

Hex Bolt

243331

29

UN Half Shaft

398528

30

Yoke

401010

31

Cross & Bearing

121010

32

Yoke & Shaft

402608

33

Roller

426122

34

Roller Mount Spacer

902284

35

Roller Lock Pin

644512

36

Hex Flange Whiz Bolt

253192

37

Whiz Nut

253035

38

Speed Nut

254431

39

9852 Gear Box Spacer

901661

40

2 Piece Center Roller Assembly

603725

41

9852 Deck Flap - right

424211

42

9852 Deck Flap - left

424212

43

9852 Deflector Strap - right

774224

44

Deflector Strap - left

774070

45

Truss Whiz Bolt

253177

46

Whiz Nut

253025

47

Vac Housing Pivot Mount

643632

48

Carriage Bolt

247130

49

Clevis Shaft

643235

50

Discharge Shield Flex Assembly

604749

51

Hitch Pin

260400

52

Blade - 18 Inch - Medium Lift (3 required)

320236

-

Blade - 18 Inch - Contour (3 required)

320238

-

Blade - 18 Inch - Notched Hi-Lift (3 required)

320239

-

Blade - 18 Inch - Extreme Hi-Lift (3 required)

320241

53

9852 Angle Shield Support

723079

54

Hex Bolt

243016

55

Belt

382084

56

9852 Deck Linkage Assembly - left

603600

57

Nut

254493

58

Clevis Yoke

265565

59

Clevis Pin

261426

60

Cotter Pin

260650

61

9852 Lift Arm Assembly

604553

62

98S Slip Yoke Clamp

732879

63

Compression Spring

283324

64

Washer

257030

65

Hex Bolt

243225

66

Nut w/Nylon Insert

253450

67

9852 Center Shield Assembly

604757

68

Rubber Draw Latch

281301

69

9852 Belt Shield - right

722339

70

Hex Whiz Bolt

253173

71

Belt Shield - left

722329

72

M1 Mulch End Cap

644224

73

M1 52 Mulch Plate - right

644608

74

M1 Mulch Plate - left

644609

75

Flex Discharge Shield

422042

76

Flex Discharge Shield Mount

644767

77

Torsion Spring

284406

78

Flex Discharge Shield Pin

780650

79

Cotter Ring

260608

80

Belt Guide

729003

81

SL96/98 Mower Safety Decal Set

603282

return to 9852 index return to top of page
