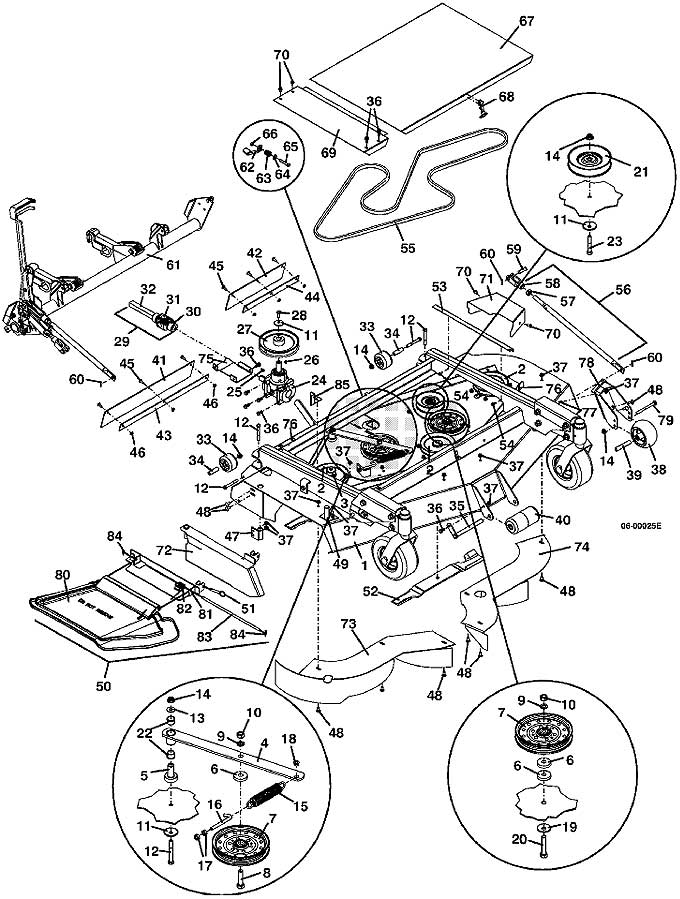

Mower Assembly • Grasshopper 9861 Deck

2003

Mower Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

9861 Mower Deck Weldment

644000

2

Sheave

415892

3

Spacer

282630

4

9861 F/A Idler Arm

824487

5

Pedestal Bearing

121650

6

Washer

883804

7

Idler

393250

8

Hex Bolt

243580

9

Lock Washer

257432

10

Nut

254470

11

Cupped Washer

257041

12

Hex Bolt

243365

13

Washer

257040

14

Whiz Nut

253043

15

Extension Spring

283848

16

Idler Adjustment J Bolt

730391

17

Nut

254450

18

Nylon Bearing

422520

19

Washer

257059

20

Hex Bolt

243590

21

Idler

393376

22

Oilite Bearing

121756

23

Hex Bolt

243350

24

Right Angle CCW HD Gearbox

390022

25

Woodruff Key

281833

26

Woodruff Key

281828

27

Sheave

415893

28

Hex Bolt

243331

29

UN Half Shaft

398528

30

Yoke

401010

31

Cross & Bearing

121010

32

Yoke & Shaft

402608

33

Roller

426122

34

Roller Mount Spacer

902284

35

Roller Lock Pin

644512

36

Hex Flange Whiz Bolt

253192

37

Whiz Nut

253035

38

Anti Scalp Wheel

484230

39

Bearing Tube

942137

40

2 Piece Center Roller Assembly

603725

41

Deck Flap - right

424207

42

Deck Flap - left

424208

43

M1 9861 right Deflector Strap

774280

44

9861 left Deflector Strap

774133

45

Truss Whiz Bolt

253177

46

Whiz Nut

253025

47

Vac Housing Pivot Mount

643632

48

Carriage Bolt

247130

49

Clevis Shaft

643235

50

Discharge Shield Flex Assembly

604749

51

Hitch Pin

260400

52

Blade - 21 Inch - Notched Hi-Lift (3 required)

320245

-

Blade - 21 Inch - Medium Lift (3 required)

320242

-

Blade - 21 Inch - Contour (3 required)

320244

-

Blade - 21 Inch -Extreme Hi-Lift (3 required)

320246

53

9861 Angle Shield Support

722156

54

Hex Bolt

243016

55

Belt

382090

56

9861 Deck Linkage Assembly - left

603594

57

Nut

254493

58

Clevis Yoke

265565

59

Clevis Pin

261426

60

Cotter Pin

260650

61

Lift Arm Assembly

604562

62

98S Slip Yoke Clamp

732879

63

Compression Spring

283324

64

Washer

257030

65

Hex Bolt

243225

66

Nut w/Nylon Insert

253450

67

Shield Assembly

604758

68

Rubber Draw Latch

281301

69

Belt Shield - right

722353

70

Hex Whiz Bolt

253173

71

Belt Shield - left

722329

72

M1 Mulch End Cap

644224

73

Mulch Plate - right

644611

74

Mulch Plate - left

644610

75

U-Joint Shield

754077

76

Speed Nut

254431

77

Hex Flange Whiz Bolt

253192

78

Anti Scalp Roller Mount - left

643695

79

Carriage Bolt

247310

80

Flex Discharge Shield

422042

81

Flex Discharge Shield Mount

644767

82

Torsion Spring

284406

83

Flex Discharge Shield Pin

780650

84

Cotter Ring

260608

85

Belt Guide

729003

-

Mower Safety Decal Set

603282

return to 9861 index return to top of page
