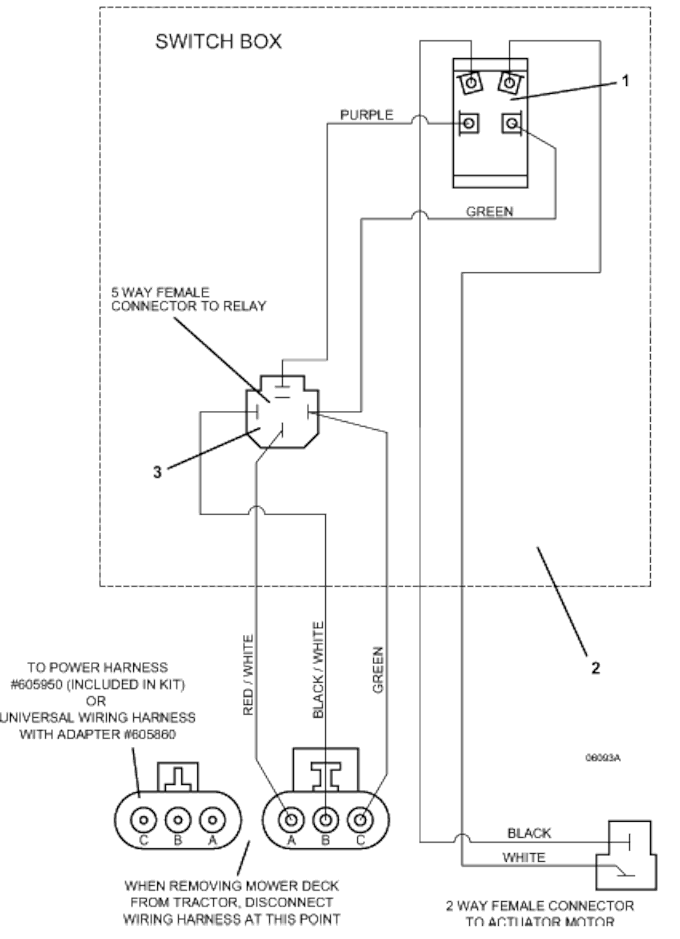

2006 thru 2015 Wiring Assembly
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
2 Position Rocker Switch |
184177 |
2 |
Rocker Switch Box |
833515 |
- |
Switch Box Cover |
833524 |
3 |
12V DC Relay |
184272 |
- |
Type 1 6mm Pushon |
184570 |
- |
Raston Terminal |
184581 |
- |
5 Way Female connector |
184926 |
4 |
Edger Wiring Assembly |
605852 |
