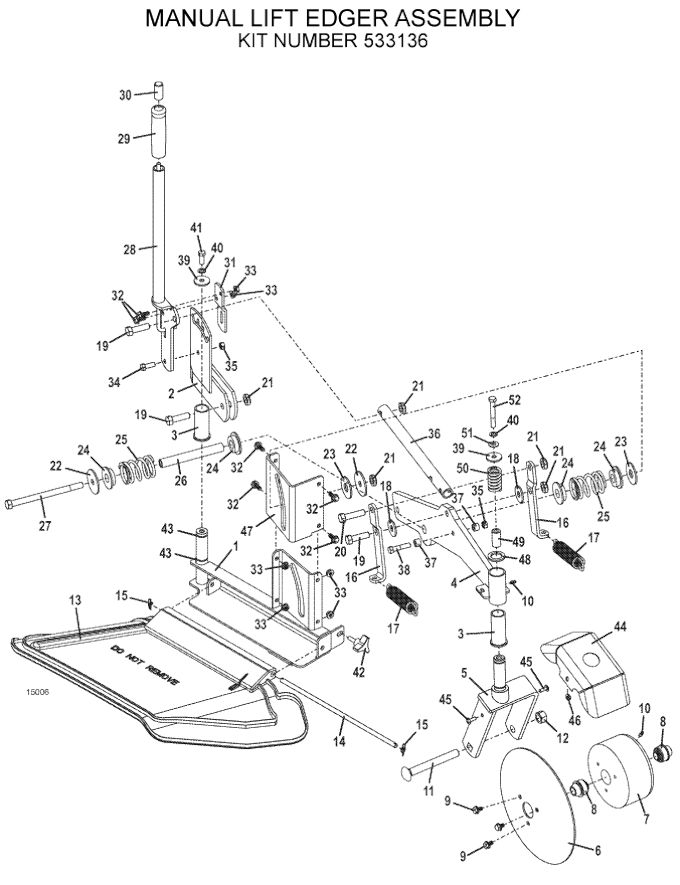

2016 Manual Lift Assembly

2016 Manual Lift Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Discharge with Edger Mount

644598

2

Edger Height Adjustment Pivot

824604

3

Flanged Sintered Bushing

833260

4

Edger Disk Pivot Arm

824603

5

Right Edger Fork Assembly

604351

-

O-Ring

425514

6

Edger Disk

824149

7

Edger Hub

783900

8

Wheel Ball Bearingl

120048

9

Whiz Bolt

253189

10

Grease Zerk Fitting

280776

11

Carriage Bolt

247715

12

Lock Nut

253970

13

Flex Discharge Shield

422042

14

Flex Discharge Shield Pin

780650

15

Cotter Pin

260608

16

Edger Spring Bracket

732969

17

Extension Spring

283848

18

Nylon Washer

821516

19

Hex Bolt

243575

20

Hex Bolt

243580

21

Nylon Insert Nut

253470

22

Washer

257061

23

Nylon Washer

821520

24

Spring Guide

885005

25

Compression Spring

283517

26

Slider Tube

942177

27

Hex Bolt

243650

28

Disk Lift Lever

643680

29

Thumb Release Handle Grip

833540

30

Thumb Button Push Rod

821675

31

Lever Guide

732593

32

Hex Flanged Whiz Bolt

253192

33

Whiz Nut

253035

34

Hex Bolt

243330

35

Lock Nut

253890

36

Edger Linkage Tube

942350

37

Spacer

902280

38

Hex Bolt

243345

39

Washer

774014

40

Lock Washer

257412

41

Hex Bolt

243331

42

Heavy Duty 3 Prong Deck Stud

252821

43

O-Ring

425514

44

Disk Fender

723231

45

Truss Whiz Bolt

253177

46

Whiz Nut

253025

47

Disk Offset Plate

755147

48

Washer

257107

49

Pivot Shaft Bearing

881105

50

Compression Spring

283389

51

Washer

257030

52

Hex Bolt

243362
