Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

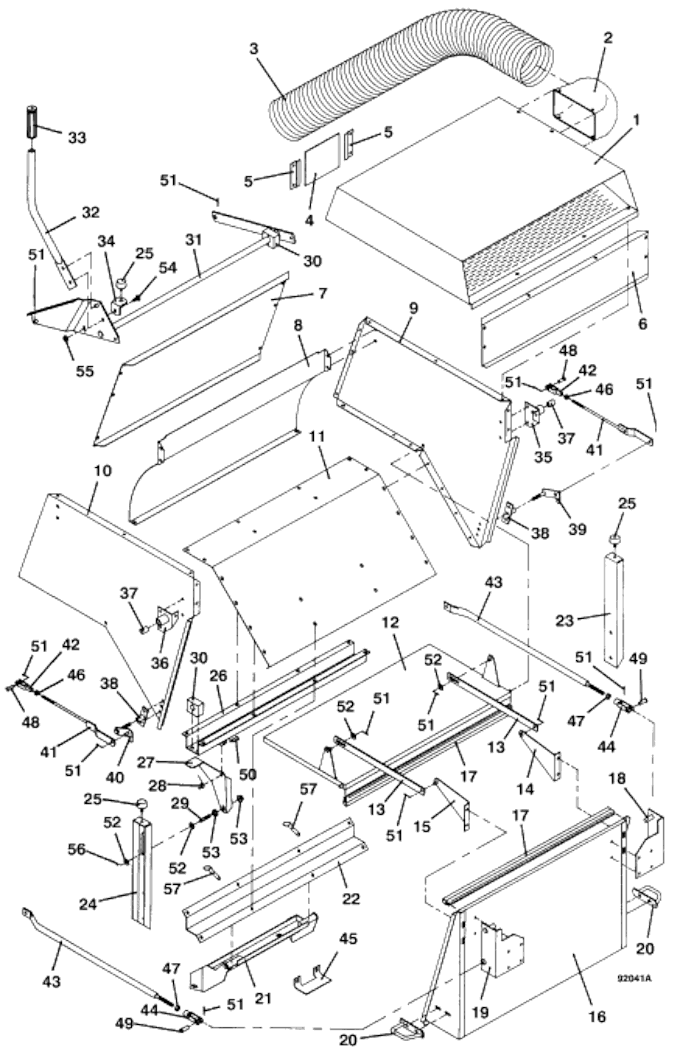

Model 12 Lever Action Hopper Asembly

Serial Number 5300000 & Above

model 12a hopper assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Cover Mod 12

643203

2

Vacuum Hose Inlet Adapter

821005

3

57" Flex Hose

424408

4

Inspection Window

423504

5

Window Clip

720131

6

Back Panel Mod 12

721269

7

Front Panel Mod 12

721417

8

Front Inside Panel

854168

9

Side Panel Mod 12

721480

10

Left Side Panel Mod 12

721481

11

Bottom Panel Mod 12

721414

12

Platform Pivot Mod 12

643954

13

Linkage Strap mod 12

782566

14

Right Arm Linkage

643067

15

Left Arm Linkage

643068

16

Door Mod 12

643279

17

Door Seal Mod 12

822502

18

Right Door Hinge

643410

19

Left Door Hinge

643411

20

Latch Bracket

643122

21

Rear Hopper Mount 12C/15B

644534

22

Hopper Mount Channel

643250

23

Right Upright Hopper Mount 12C

729313

24

Left Upright Hopper Mount 12C

729314

25

Rubber Bumper

424052

26

Upper Channel

643206

27

Latch Mod 12

729152

28

Torsion Spring

284417

29

Pin Latch

780386

30

Pivot Bearing

822305

31

Lever Mount

644565

32

Hopper Handle

734075

33

Handle Grip

422175

34

Hopper Lever Stop

732592

35

Right Door Hinge Mount

643541

36

Left Door Hinge Mount

643542

37

Nylon Bearing

422580

38

Latch Pivot Bracket

643148

39

Right Door Latch

644155

40

Left Door Latch

644156

41

Latch Linkage Mod 12

643453

42

Clevis Yoke

265537

43

Door Linkage Mod 12

644529

44

Clevis Yoke

265545

45

Axle Beam Spacer

900160

46

Nut

254441

47

Nut

254452

48

Clevis Pin

261284

49

Clevis Pin

261346

50

Clevis Pin

261338

51

Cotter Pin

260648

52

Washer

257030

53

Whiz Nut

253043

54

Carriage Bolt

247130

55

Whiz Nut

253035

56

Hair Pin

260523

57

Hitch Pin

260400

58

Lever Actuated Hopper with Mount 12C

503213
