Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

Model 15 Hopper

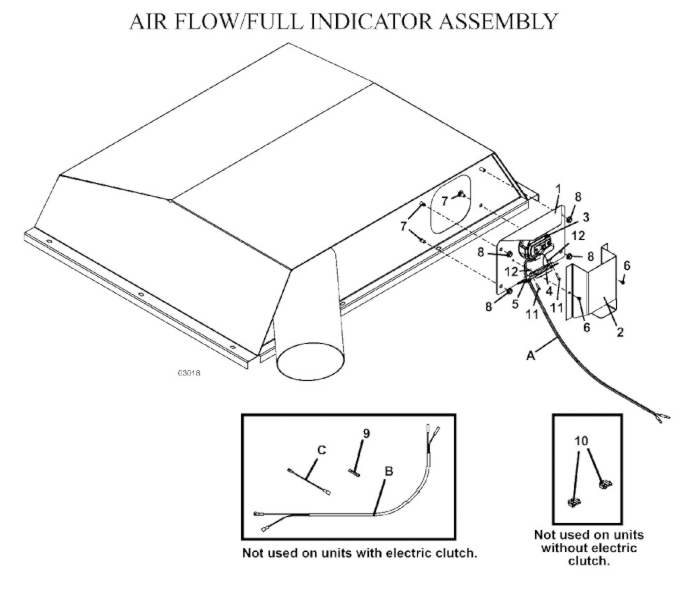

Air Flow Indicator Assembly

Air Flow Indicator Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Full Indicator Mount Plate

721127

2

Full Indicator Cover

721092

3

Air Switch

143327

4

Full Indicator Buzzer

182459

5

Cord Clamp

181235

6

Screw

252040

7

Whiz Bolt

253176

8

Whiz Nut

253025

9

6 Amp Fuse

181540

10

Tap-In Connector

184375

11

Screw

250163

12

Nut with Washer

254402

Return to Model 15 Index Return to Top
