Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

Model 15 Hopper

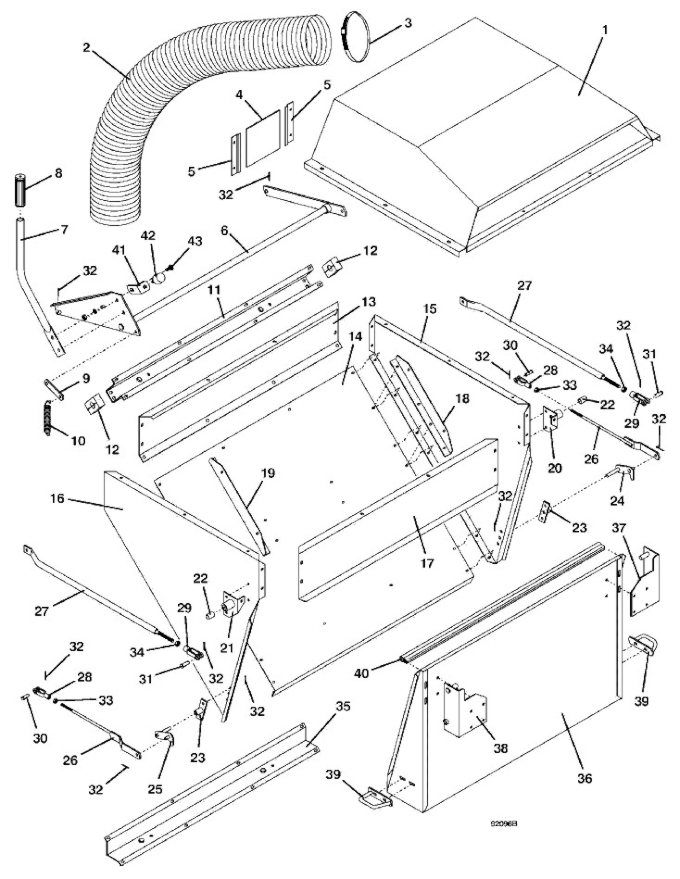

Model 15 Hopper Assembly

model 15 hopper assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Hopper Top LA

643807

2

57" Flex Hose

424408

3

6" Hose Clamp

280345

4

Inspection Window

423505

5

Window Clip

720145

6

Lever Actuated Door Handle Mount

643563

7

Hopper Handle LA

734075

8

Handle Grip

422175

9

Spring Bracket

782508

10

Extension Spring

283821

11

Right Upper Offset Mount

643010

12

Pivot Bearing

822305

13

Front Panel

721336

14

Bottom Panel

721745

15

Right Side Panel

721472

16

Left Side Panel

721473

17

Back Panel

721346

18

Right Hopper Reinforcement Model 15

723086

19

Left Hopper Reinforcement Model 15

723087

20

Right Door Hinge Mount

643541

21

Left Door Hinge Mount

643542

22

Nylon Bearing

422615

23

Latch Pivot Bracket

643148

24

Right Door Latch

644155

25

Left Door Latch

644156

26

Latch Linkage Rod

643722

27

Door Linkage Rod

643720

28

Clevis Yoke

265537

29

Clevis Yoke

265545

30

Clevis Pin

261284

31

Clevis Pin

261346

32

Cotter Pin

260648

33

Nut

254441

34

Nut

254452

35

Right Lower Offset Mount

643011

36

Hopper Door Model 15 LA

643282

37

Right Door Hinge

643410

38

Left Door Hinge

643411

39

Latch Bracket

643122

40

Hopper Door Seal

822505

41

Hopper Lever Stop

732592

42

Rubber Bumper

424053

43

Carriage Bolt

247130
