Genuine OEM Grasshopper® Mower Parts Diagrams
Model 15 Hopper

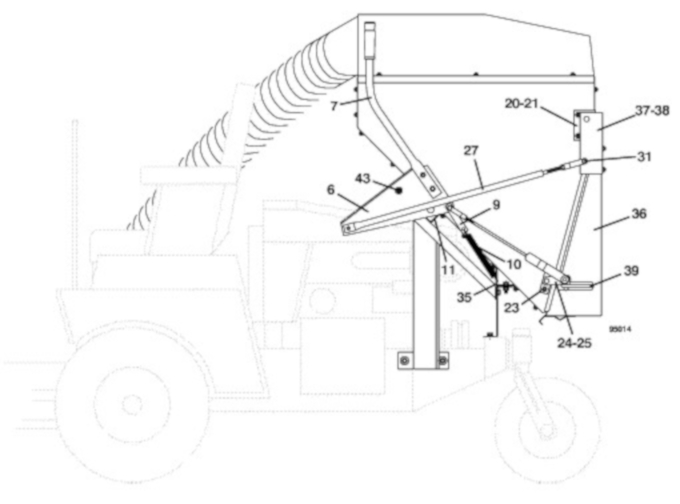

Model 15 Hopper Assembly - Side View
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
6 |
Lever Actuated Door Handle Mount |
643563 |
7 |
Hopper Handle |
734075 |
9 |
Spring Bracket |
782508 |
10 |
Extension Spring |
283821 |
11 |
Right Upper Offset Mount |
643010 |
20 |
Right Door Hinge Mount |
643541 |
21 |
Left Door Hinge Mount |
643542 |
23 |
Latch Pivot Bracket |
643148 |
24 |
Right Door Latch |
644155 |
25 |
Left Door Latch |
644156 |
27 |
Door Linkage Rod |
643720 |
31 |
Clevis Pin |
261346 |
35 |
Right Lower Offset Mount |
643011 |
36 |
Model 15 Hopper Door |
643282 |
37 |
Right Door Hinge |
643410 |
38 |
Left Door Hinge |
643411 |
39 |
Latch Bracket |
643122 |
43 |
Carriage Bolt |
247130 |
