Genuine OEM Grasshopper® Mower Parts Diagrams

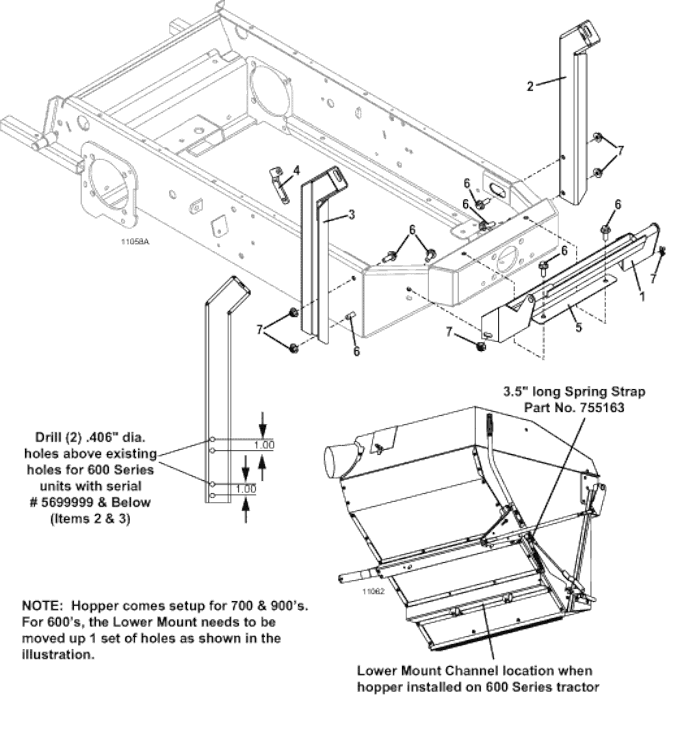

Model 15B Lever Action Mount Kit
600 Series
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
Call Toll-Free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
12C / 15B Rear Hopper Mount |
644534 |
2 |
600 Series Model 15B Right Upright |
645900 |
3 |
600 Series Model 15B Left Upright |
645901 |
4 |
600 Series Model 15B Spring Strap |
755163 |
5 |
Hopper Mount Spacer |
900131 |
6 |
Flanged Whiz Bolt |
253203 |
7 |
Whiz Nut |
253043 |
8 |
600T Model 15B Hopper Mount Kit |
503540 |
