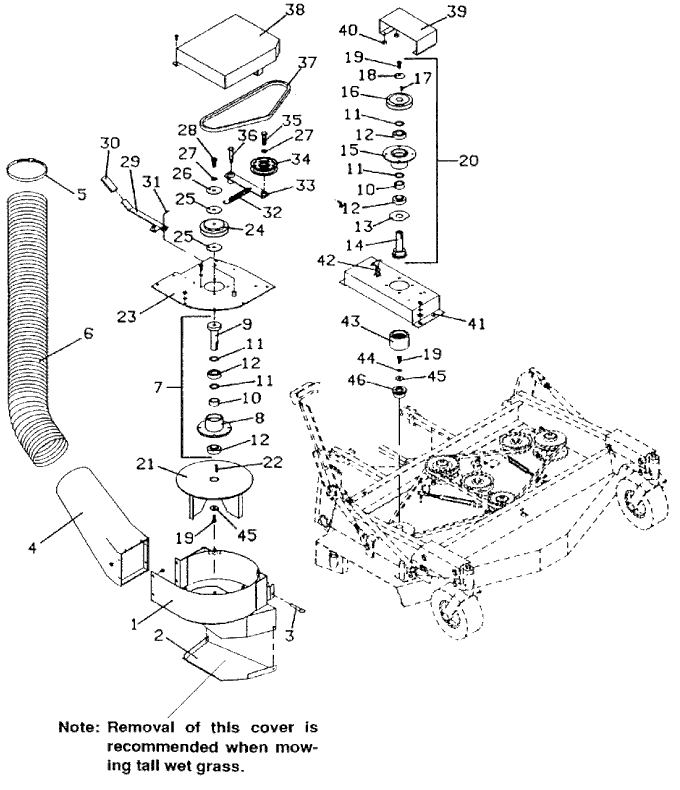

1

90S Vac Housing

643434

2

Blower Chute Cover

724261

3

Hitch Pin

260400

4

Hose Adapter Tube

422020

5

6" Hose Clamp

280345

6

57" Flex Hose

424408

7

Vac Fan Spindle Assembly

603797

8

Vac Fan Spindle Housing

320522

9

Vac Blower Spindle Shaft

321170

10

Spacer

282630

11

Washer

257106

12

Ball Bearing

120080

13

Washer

770045

14

Vac Spindle Shaft

603770

-

Roll Pin

261060

-

Upper Flex Coupler

831035

-

Spindle Shaft

882050

15

Spindle Housing

320525

16

Sheave for 48" & 52" Decks

831435

-

Sheave for 61" Decks

831438

17

Key Square

281580

18

Cupped Washer

257041

19

Hex Bolt

243331

20

Vac Drive Spindle Assembly Used on 48"/52" Vacs

604792

-

Vac Drive Spindle Assembly Used on 61" Vacs

604791

21

Vac Fan 1"

824518

22

Key Square

281583

23

Vac Blower Top

643813

24

Sheave

415845

25

Fiber Washer

421200

26

Washer

257061

27

Lock Washer

257432

28

Grade 5 Hex Bolt

243581

29

Belt Tensioner Arm

643042

30

Handle Grip

422150

31

Cotter Pin

260652

32

Extension Spring with Swivel

283820

33

Vac Idler Arm

603043

-

Nylon Bearing

422580

34

Idler

393200

35

Hex Bolt

243565

36

Shoulder Bolt

259745

37

Vac Belt for 44" Vacs

382745

-

Vac Belt for 48" & 52" Vacs

382753

-

Vac Belt for 61" Vacs

382767

38

Vac Belt Shield 944

643782

-

Vac Belt Shield 948/952

643763

-

Vac Belt Shield 961

643802

39

Vac Drive Shield

643750

40

Rubber Bumper

424015

41

948/952 Vac Drive Mount Assembly

643286

-

961 Vac Drive Mount Assembly

643287

42

Rubber Draw Latch

281301

43

Nylon Coupler Sleeve

388560

44

Lock Washer

257412

45

Washer

774020

46

Lower Flex Coupler for 1" Blade Spindle

831038
