Genuine OEM Grasshopper® Mower Parts Diagrams

Remote Vac™ Vacuum & Drive Assembly
Serial Number 330000 & Above (25 mm)

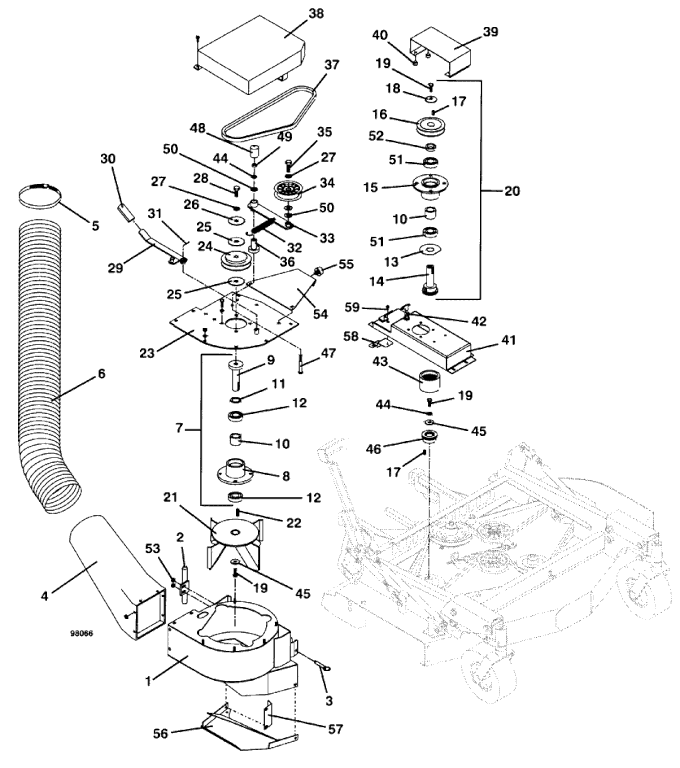

Vacuum and Drive Assembly SN 330000 and Above 25mm
Click On The Part Number For Details

Item #

Description

Part Number

1

9561 Vac Housing

643463

2

952 Blower Adapter

644012

3

Hitch Pin

260400

4

Hose Adapter Tube

422020

5

6" Hose Clamp

280345

6

57" Flex Hose

424408

7

Vac Fan Spindle Assembly

604795

8

Vac Fan Spindle Housing

320522

9

Vac Spindle Shaft

604765

10

Drive Bearing Spacer

903650

11

Washer

257106

12

Ball Bearing

110080

13

Washer

770045

14

Vac Spindle Shaft Assembly

604760

-

Roll Pin

261060

-

Upper Flex Coupler

831036

-

Spindle Shaft

882051

15

Spindle Housing

320525

16

Sheave Used on 944 Vacs

414665

-

Sheave Used on 948/952 Vacs

414685

-

Sheave Used on 961 Vacs

414696

17

Key Square

281580

18

Cupped Washer

257041

19

Hex Bolt

243331

20

Vac Drive Spindle Assembly Used on 44" Vacs

604789

-

Vac Drive Spindle Assembly Used on 48"/52" Vacs

604790

-

Vac Drive Spindle Assembly Used on 61" Vacs

604791

21

Vac Fan 25mm

824533

22

Key Square

281583

23

Vac Blower Top

643813

24

Sheave

415845

25

Fiber Washer

421200

26

Washer

257061

27

Lock Washer

257432

28

Grade 5 Hex Bolt

243581

29

Belt Tensioner Arm

643042

30

Handle Grip

422150

31

Cotter Pin

260652

32

Extension Spring

283821

33

Vac Idler Arm

824503

-

Oilite Bearing

121756

34

Idler

393200

35

Hex Bolt

243565

36

Pedestal Bearing

121650

37

Vac Belt for 44" Vacs

382745

-

Vac Belt for 48" & 52" Vacs

382753

-

Vac Belt for 61" Vacs

382767

38

Vac Belt Shield 944

643782

-

Vac Belt Shield 948/952

643763

-

Vac Belt Shield 961

643802

39

Vac Drive Shield

643750

40

Rubber Bumper

424015

41

944 Vac Drive Mount Assembly

604309

-

948/952 Vac Drive Mount Assembly

604310

-

961 Vac Drive Mount Assembly

644214

42

Rubber Draw Latch

281301

43

Nylon Coupler Sleeve

388560

44

Lock Washer

257412

45

Washer

774020

46

Lower Flex Coupler for 25mm Blade Spindle

831039

-

Lower Flex Coupler for 1" Blade Spindle

831038

47

Hex Bolt

243360

48

Vinyl Cap

422098

49

Nut

254450

50

Washer

257062

51

Ball Bearing

110081

52

Spacer

282615

53

Whiz Nut

253035

54

961 Stabilizer Plate

729376

55

Rubber Bumper

424052

56

Angled Blower Chute Plate

643039

57

Chute Extension Plate

722069

58

944 Bearing Mount Fill Panel

721113

-

948/952 Bearing Mount Fill Panel

722079

59

Hex Whiz Bolt

253173

Return to Remote Vac Index Return to Top
