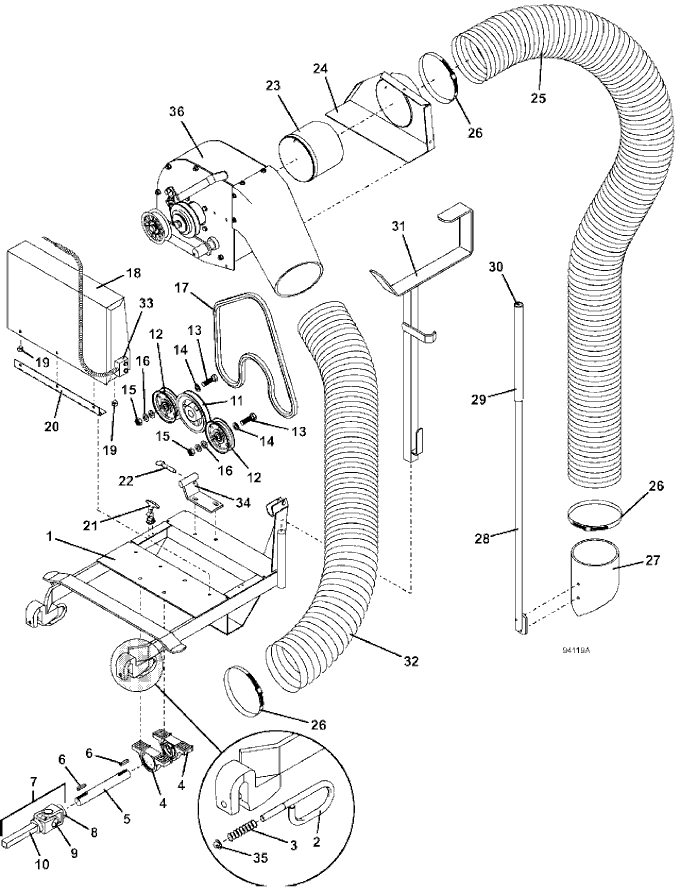

1

Auxiliary Vac Quick Detach Mount Assembly

603583

2

Deck Mount Latch Pin

730433

3

Compression Spring

283285

4

Pillowblock Bearing

122044

-

Set Screw

259305

5

Aux Vac Power Shaft

882142

6

Key Square

281583

7

Rectangular UN Half Shaft

398518

8

Yoke

401013

9

Cross & Bearing

121010

10

Rectangular Yoke & Shaft

402604

11

Sheave

415877

12

Idler

393370

13

Hex Bolt

243575

14

Lock Washer

257432

15

Nut

254470

16

Washer

257062

17

Auxiliary Wand Vac Belt

382151

18

Aux Vac Belt Shield with Decal

693740

19

Rubber Bumper

424015

20

Aux Vac Shield Hinge

820110

21

Rubber Draw Latch

281301

22

Hitch Pin

260400

23

Vac Pivot Tube

643821

24

Auxiliary Fan Inlet with Decal

693345

25

6" Wand Hose

821840

26

6" Hose Clamp

280345

27

Auxiliary Vacuum Tube

822680

28

Auxiliary Wand Handle

643324

29

Handle Grip

422179

30

Vinyl Cap

422095

31

Hose Rack

643908

32

Aux Vac Hose

821834

33

Safety Module

603749

34

Base Shaft Mount

643102

35

External Retainer

263490

36

Aux Wand Vac Assembly

503165

37

Auxiliary Wand Vac Harness

605989
