Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

100 Series MidMount Tractors

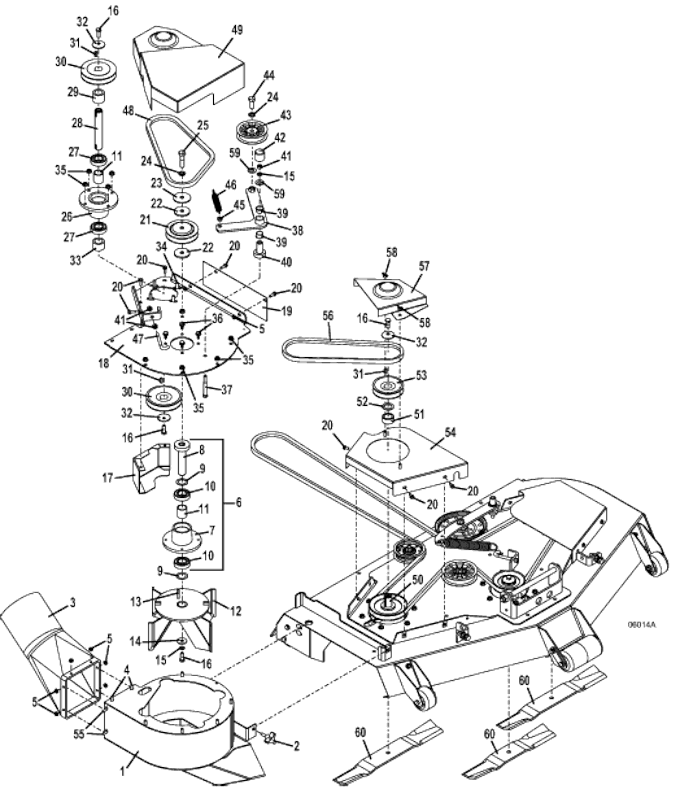

M252 Vacuum & Drive Assembly

M252 Vacuum and Drive Assembly for 100 Series Midmount Tractors

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

33 Series Blower Housing

644339

2

3 Prong HD Deck Stud

252821

3

Hose Adapter Tube

833510

4

Truss Whiz Bolt

253177

5

Whiz Nut

253025

6

Vacuum Fan Spindle Assembly

604795

7

Vacuum Fan Spindle Housing

320522

8

Vacuum Spindle Shaft

604765

9

Washer

257106

10

25MM Ball Bearing

110080

11

Drive Bearing Spacer

903650

12

25MM Vacuum Fan

824533

13

Square Key

281583

14

Washer

774020

15

Lock Washer

257412

16

Hex Bolt

243331

17

Drive Belt Shield

644783

18

M1 Vacuum Blower Top

643853

19

M148 Vacuum Belt Guard

722637

20

Hex Whiz Bolt

253175

21

Sheave

415845

22

Fiber Washer

421200

23

Washer

257061

24

Lock Washer

257432

25

Grade 5 Hex Bolt

243581

26

Spindle Housing

320525

27

Ball Bearing

110081

28

M1 Vacuum Shaft

882093

29

Vacuum Spindle Spacer

902648

30

Sheave

414696

31

Square Key

281580

32

Cupped Washer

257041

33

Vacuum Spindle Lower Spacer

902645

34

Flanged Hex Whiz Bolt

253193

35

Whiz Nut

253035

36

Flanged Hex Whiz Bolt

253191

37

Hex Bolt

243360

38

M1 Vacuum Idler Arm

824537

39

Oilite Bearing

121756

40

Pedestal Bearing

121650

41

Nut

254450

42

Vinyl Cap

422098

43

Idler

393200

44

Hex Bolt

243565

45

Nylon Bearing

422520

46

Extension Spring with Swivel

283820

47

Idler Adjustment "J" Bolt

730391

48

Upper Vacuum Belt

382750

49

33Series Vacuum Belt Shield

644795

50

25MM Spindle Shaft Assembly

604770

51

Spacer

282630

52

Washer

257104

53

Sheave

414685

54

M2 Vacuum Belt Mount Shield

643887

55

Truss Whiz Bolt

253176

56

Lower Vacuum Belt

382733

57

M248 Vacuum Drive Shield

722831

58

Nut

254443

59

Washer

257062

60

18" Medium Lift Blade

320236

61

M252 Vacuum Assembly

503138

62

M252 Vac Assembly with Blades

503181

Return to 100 Series MidMount Grasscatcher Index Return to Top
