Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

M1 Series MidMount Tractors

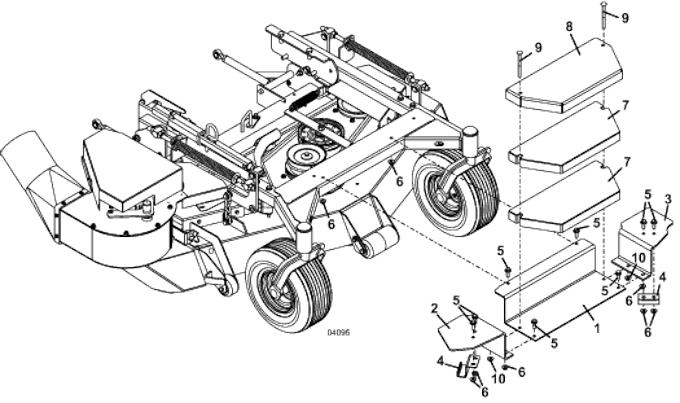

Model 12HT Weight Kit for 48" & 52" Decks

Model 12HT Weight Kit for M1 Series MidMount Tractors

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

M1 52 Weight Kit Mount

724696

2

Right M1 52 Weight Kit Gusset (Used in Kit #503896)

724623

2

Right M1 52 Weight Kit Gusset (Used in Kit#503892)

726200

3

Left M1 52 Weight Kit Gusset (Used in Kit #503896)

724624

3

Left M1 52 Weight Kit Gusset (Used in Kit #503892)

726201

4

M1 Weight Kit Clamp

729337

5

Flanged Whiz Bolt

253203

6

Whiz Nut

253043

7

Counterweight

323951

8

50 Lb Weight Cover

729691

9

Carriage Bolt

247310

10

Whiz Nut

253043

11

M1 52" Weight Mount Kit

503896

12

Model 16 M1 52 Weight Mount Kit

503892

13

Model 16 100Lb Counterweight Group

504166

Return to M1 Series 8HT/12HT Grasscatcher Index Return to Top
