Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

M1 Series MidMount Tractors

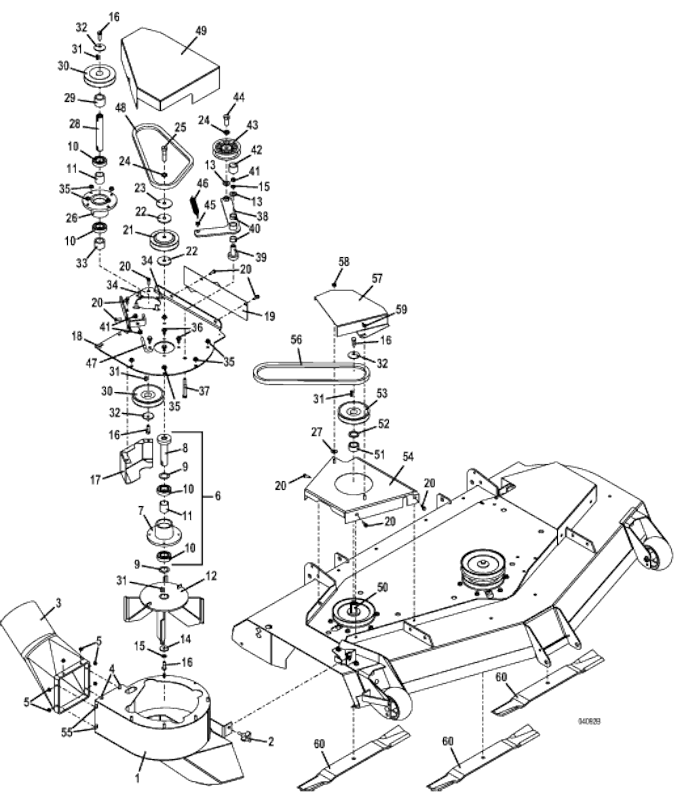

52", 61", & 72" Vacuum & Drive Assembly

52 Inch, 61 Inch,  and 72 Inch Vacuum and Drive Assembly for M1 Series MidMount Tractors

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Blower Housing

644335

2

3 Prong HD Deck Stud

252821

3

Hose Adapter Tube

833510

4

Truss Whiz Bolt

253177

5

Whiz Nut

253025

6

Vacuum Fan Spindle Assembly

604795

7

Vacuum Fan Spindle Housing

320522

8

Vacuum Spindle Shaft

604765

9

Washer

257106

10

Ball Bearing

110080

11

Drive Bearing Spacer

903650

12

25MM Vacuum Fan

824533

13

Washer

257062

14

Washer

774020

15

Lock Washer

257412

16

Hex Bolt

243331

17

Drive Belt Shield

644783

18

Vacuum Blower Top

643853

19

52" & 61" Vacuum Belt Guard

722378

19

72" Vacuum Belt Guard

722384

20

Hex Whiz Bolt

253175

21

Sheave

415845

22

Fiber Washer

421200

23

Washer

257061

24

Lock Washer

257432

25

Grade 5 Hex Bolt

243581

26

Spindle Housing

320525

27

Washer

257030

28

M1 Vacuum Shaft

882093

29

Vacuum Spindle Spacer

902648

30

Sheave

414696

31

Square Key

281580

32

Cupped Washer

257041

33

Vacuum Spindle Lower Spacer

902645

34

Flanged Hex Whiz Bolt

253193

35

Whiz Nut

253035

36

Flanged Hex Whiz Bolt

253191

37

Hex Bolt

243360

38

Vacuum Idler Arm

824537

38

Oilite Bearing

121756

39

Pedestal Bearing

121650

40

Oilite Bearing

121756

41

Nut

254450

42

Vinyl Cap

422098

43

Idler

393200

44

Hex Bolt

243565

45

Nylon Bearing

422520

46

Extension Spring with Swivel

283820

47

Idler Adjustment "J" Bolt

730391

48

Upper Vacuum Belt

382750

49

Blower Belt Shield

644787

50

Spindle Shaft Assembly

604773

51

Spacer

282630

52

Washer

257107

53

Sheave (For 52" Decks)

414685

53

Sheave (For 61" Decks)

414696

53

Sheave (For 72" Decks)

414709

54

52" Vacuum Belt Shield Mount

643843

54

61" Vacuum Belt Shield Mount

643844

54

72" Vacuum Belt Shield Mount

643846

55

Truss Whiz Bolt

253176

56

Blower Drive Belt (For 52" Decks)

382745

56

Blower Drive Belt (For 61" Decks)

382750

56

Blower Drive Belt (For 72" Decks)

382754

57

52" Vacuum Drive Shield

722359

57

61" Vacuum Drive Shield

722394

57

72" Vacuum Drive Shield

722396

58

Nylon Insert Nut

253450

59

Nut

254443

60

18" Medium Lift Blade

320236

60

21" Medium Lift Blade

320242

60

25" Medium Lift Blade

320250
