Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

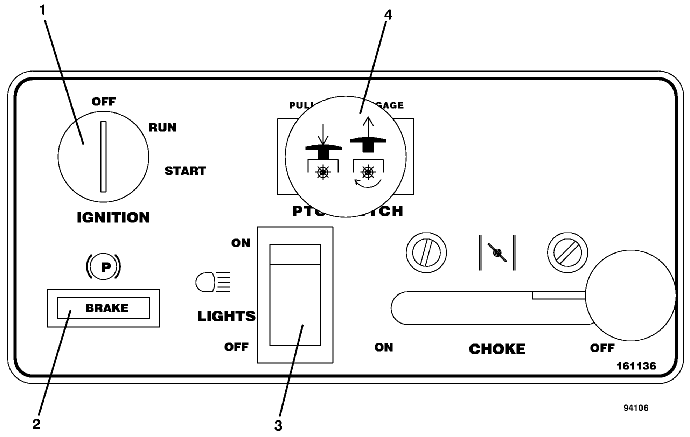

616 • Console Diagram

2000

Console

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Key Switch - Briggs & Stratton / Kohler

183806

-

Ignition Key with Cover

101101

-

Nut

254498

-

Plastic Panel

422078

2

Brake Indicator Light

182326

3

Rocker Switch

184179

4

Push / Pull Switch

183925

5

600 Console Decal

161136
