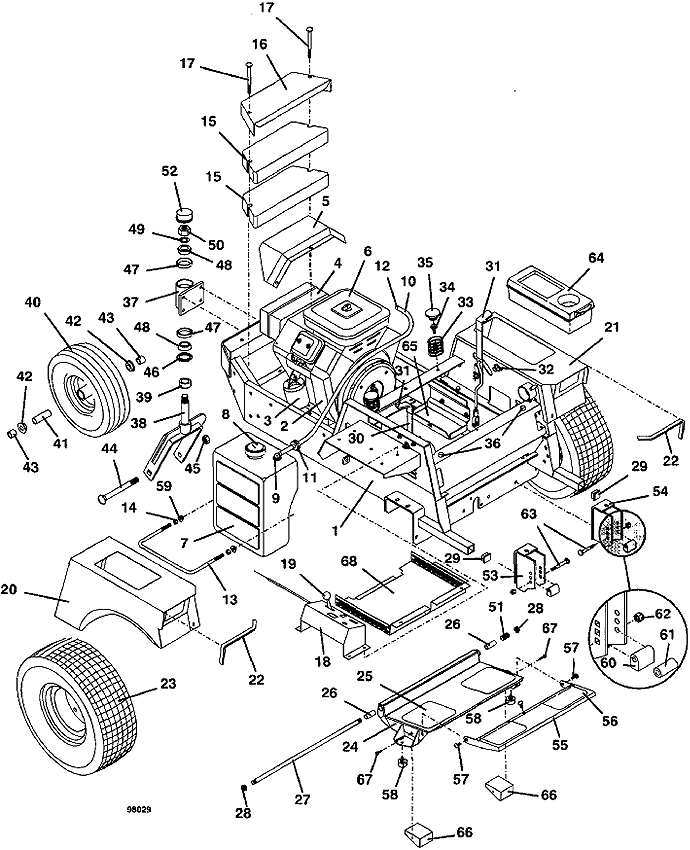

616 • Tractor Assembly

2000

Tractor Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

600 Lower Frame

643835



600 97 Upper Frame

643838

2

16hp Briggs & Stratton Vanguard Engine

100136

3

Briggs Oil Filter

100803

4

Muffler & Support Assembly

603592

-

Vanguard Heat Shield

729196

5

600 Muffler Shield

722266

6

Briggs Air Filter

100920

-

Briggs & Stratton Precleaner Air Filter

100921

7

600 Fuel Tank Assembly

603810

8

Fuel Cap

100210

9

Fuel Draw Tube

101830

10

Fuel Hose

821738

11

Briggs In-Line Fuel Filter

366560

12

Spring Hose Clamp

280260

13

600 Fuel Tank Mount

730450

14

Nut

254450

15

34 lb. Counterweight

323933

16

34 lb. Weight Cover Plate

729514

17

Carriage Bolt

247325

18

600 Console Panel with Decal

693110

19

Mechanical Choke Housing

142210

20

600S right Fender with Decals

693202

-

616 right Trim Decal

163226

21

600S left Fender with Decals

693203

-

616 left Trim Decal

163227

22

Fender Edge Trim

822631

23

18 X 8.5 X 8 Wheel & Turf Tire

483905

-

18 X 8.5 X 8 Turf Tire

482452

-

8 X 5.375 4-Bolt Wheel

483398

24

600 Adjustable Foot Platform

604347

25

Foot Rest Tread

420905

26

Nylon Bearing

422615

27

600 Footrest Pivot Rod

780656

28

Nylon Insert Nut

253470

29

1 inch ID Square Plastic Plug

422065

30

614/616 Throttle Assembly

603852

-

Control Cable Assembly

323640

-

Throttle Lever Stop

722009

31

Handle Grip

422150

32

Spacer

902280

-

Hex Bolt

243330

-

Washer

257040

33

Compression Spring

283516

34

Whiz Flange Bolt

253203

35

Seat Spring Cap

422127

36

Rubber Bumper

424015

37

RR Fork Pivot Housing Assembly

604596

38

rear Fork & Lock Nut Assembly

604364

39

Spacer

282615

40

13 x 5 x 6 Wheel & Tire with Bearing & Spacer

483861

-

13 X 5 X 6 Tubeless Ribbed Tire

482350

-

6 X 3.25 Tan Wheel with Bearing & Spacer

483301

41

Rear Wheel Bearing Spacer

902475

42

Ball Bearing

120050

43

Axle Spacer

902425

44

Carriage Bolt

247725

45

Lock Nut

253970

46

Seal

125855

47

Bearing Cup

123522

48

Taper Bearing

122522

49

14 GA Bushing Washer

257091

50

Lock Nut

253992

51

Compression Spring

283312

52

Dust Cap

481432

53

600 right QD Deck Mount

643097

54

600 left QD Deck Mount

643098

55

600 Foot Platform Extension

603300

56

Footrest Extension Tread

420904

57

Carriage Bolt

247130

58

Rubber Bumper

424052

59

Whiz Nut

253043

60

Deck Mount Bushing

282575

61

Floating Deck Mount Bushing

282576

62

Nylon Insert Nut

253470

63

Special Carriage Bolt

247280

64

Tool Box

422040

65

600 Series Battery Box

729311

66

Footrest Isolator Block

424100

67

Hex Bolt

243026

68

600 Series Trash Screen

721387

69

Grommet

101875

70

Decal Set for 616 with Side Console

604291
