Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

616T • Tail Wheel Options 1

2012

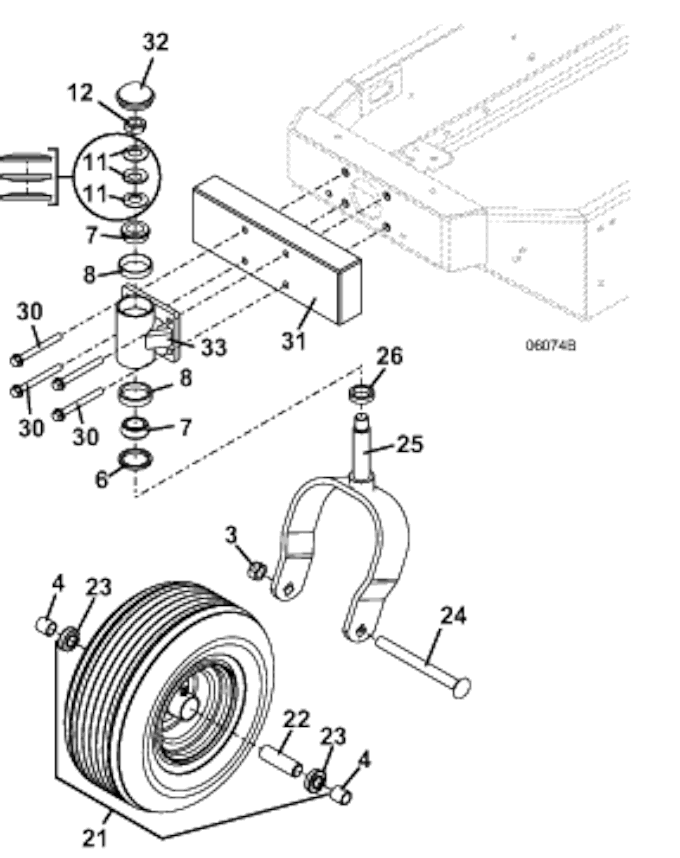

Tail Wheel Options Diagram

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

3

Lock Nut

253970

4

Axle Spacer

902425

6

Seal

125855

7

Taper Bearing

122522

8

Bearing Cup

123522

11

Spring Washer

257320

12

Nylon-Top Jam Lock Nut

254505

21

13 x 6.50 x 6 Wheel & Tire w/Bearing & Spacer

483865

-

13 x 6.50 x 6 Ribbed Tire

482355

-

6 x 4.5 Wheel without Bearings - tan

483306

22

Rear Wheel Bearing Spacer

902475

23

Ball Bearing

120050

24

Carriage Bolt

247726

25

Tailwheel Fork with Tapered Bearings

645221

26

Spacer

282615

30

Whiz Bolt

253212

31

600 Series Counterweight

783810

32

Domed Dust Cap

481434

33

RR Fork Pivot Housing Assembly

604596

Return to 616T Index TOP
