Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

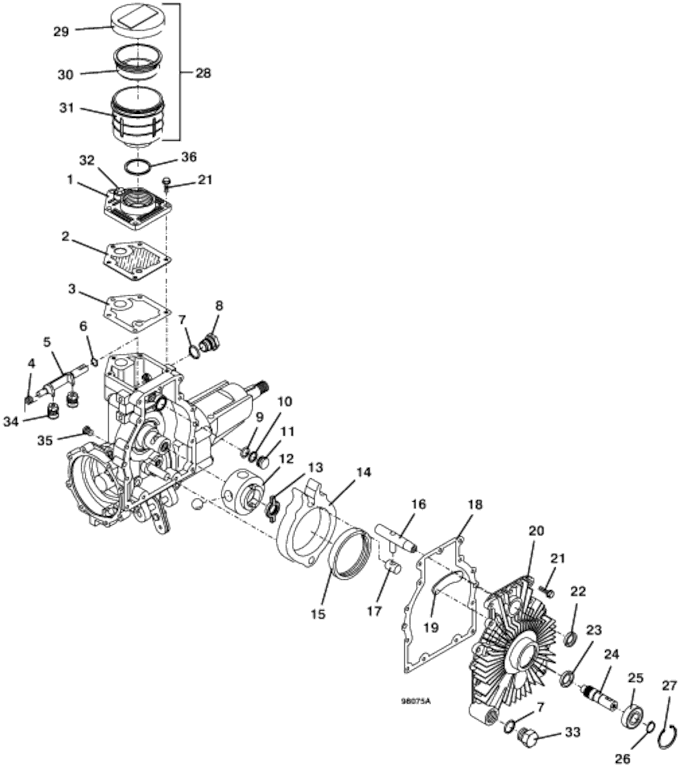

618 • Main Housing Assembly

2000

Main Housing Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

NOT AVAILABLE

103734

2

Oil Filter Assembly w/Gasket - NOT AVAILABLE

603605

3

Valve Cover Gasket

420343

4

Torsion Spring

284409

5

Dump Valve Bracket

284704

6

O-Ring

126526

7

O-Ring

126537

8

Dump Valve Fitting

103740

9

O-Ring

126530

-

O-Ring

126525

10

Backup Ring

126636

-

Backup Ring

126630

11

Dampening Piston Assembly - NOT AVAILABLE

103727

-

NOT AVAILABLE

103719

12

Pump Rotor Assembly - Non-Charged - NOT AVAILABLE

103778

13

Input Drive

103745

14

Cam Ring Assembly

103777

15

Bearing Cup

123758

16

Control Shaft

103748

17

Cam Ring Insert

103720

18

Pump Cover Gasket

420341

19

Wear Plate

103718

20

Input Shaft Pump Cover - NOT AVAILABLE

103769

21

Machine Screw

250296

22

Seal

125170

23

Seal

125250

24

NOT AVAILABLE

103738

25

Ball Bearing

120054

26

External Retainer

263524

27

Internal Retainer

263175

28

Reservoir Assembly - NOT AVAILABLE

421995

29

Reservoir Cap

421998

30

Reservoir Diaphragm - NOT AVAILABLE

421999

31

Reservoir Body

421997

-

Reservoir to Hydro Gasket

420350

32

O-Ring Hex Head Plug

103735

33

10MB O-Ring Boss Hex Plug

365528

34

Check Valve Assembly

603223

35

O-Ring Boss Plug

103739

-

O-Ring

126524

36

Reservoir to Hydro Gasket

420350
