Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

618 • Wiring & Lights

2002

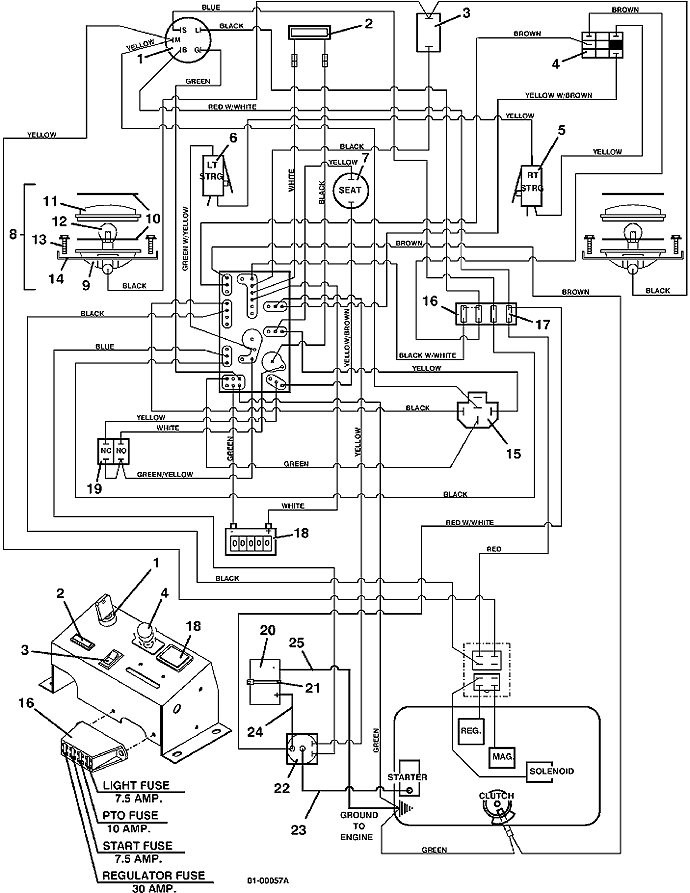

Wiring Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Briggs & Stratton / Kohler Ignition Switch with Key

183806

-

Ignition Key with Cover

101101

-

Nut

254498

-

Plastic Panel

422078

2

Brake Indicator Light

182326

3

Rocker Switch

184179

4

Push/Pull Switch

183925

5

Lever Switch

183860

-

Steering Switch Mount - right

720160

6

Lever Switch

183860

-

Steering Switch Mount - left

720161

7

Seat Switch

183870

8

Worklamp Assembly

603400

9

Rectangular Lamp Housing

182350

10

Lamp Assembly Gasket

420550

11

Rectangular Lamp Lens

182400

12

Worklamp Light Bulb

182000

13

#10 Screw

252057

14

Worklight Clamp

720163

15

12V DC Relay with Mount

184271

-

Type 1 6mm Push-On

184570

-

.250 Fast-On Terminal

184581

-

5-Way Female Connector

184926

16

Fuse Block

181722

-

Fuse ID Decal

162320

-

1 Wire Fuse Clip

184458

-

2 Wire Fuse Clip

184460

-

Double Fuse Clip

184472

17

30 amp Auto ATC Fuse

181470

-

10 amp Auto ATC Fuse

181462

-

7.5 amp Auto ATC Fuse

181460

18

Snap In Hour Meter

141551

19

Brake Interlock Switch

183894

20

12 Volt Wet Battery

180125

-

600 Series Battery Box

729311

21

Battery Hold-Down Strap

603110

-

Battery Strap Spacer

902262

22

4 Post Solenoid Relay Switch

184251

23

6" Red Battery Cable

180306

24

11" Red Battery Cable

180309

-

Starter Terminal Boot

425219

25

20" Black Battery Cable

180280

26

618K Wiring Assembly

604949

27

600 Console Decal

161141
