Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

718 • Drive Linkage

2000

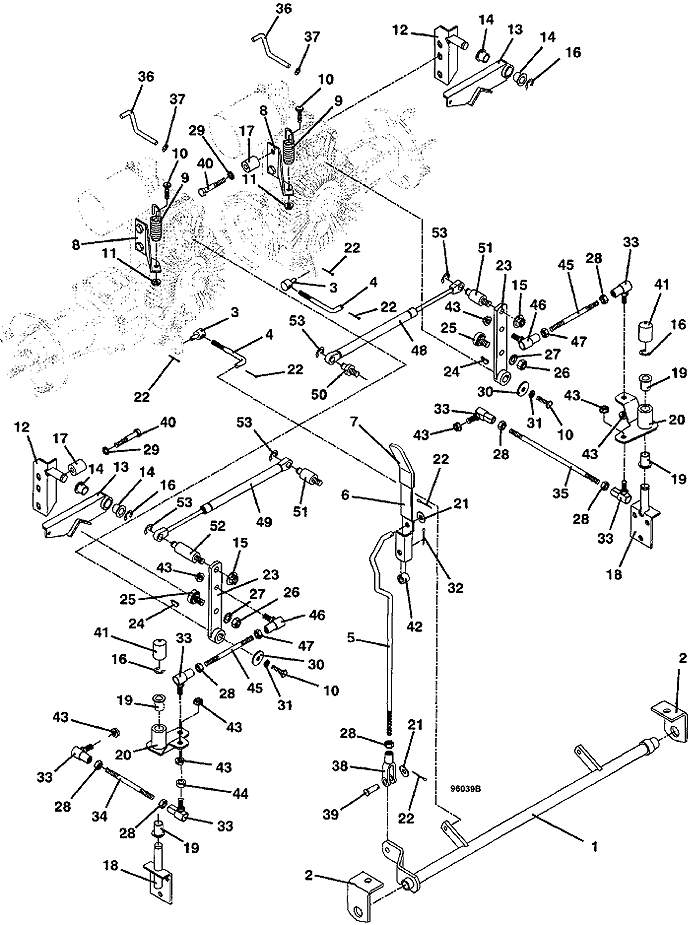

Drive Linkage Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

771 Brake Pivot

643955

2

Brake Pivot Mount Bracket

732610

3

Brake Linkage Pin

880924

4

Brake Linkage Rod

730256

5

700 Brake Linkage Rod

730361

6

700 Brake Lever

729046

7

Handle Grip

422150

8

Neutral Return Spring Bracket

729072

9

Extension Spring

283823

10

Hex Bolt

243030

11

Whiz Nut

253025

12

Neutral Return Pivot Mount

643603

13

Neutral Return Arm with Bearing

603084

14

Sleeve Bearing with Flange

422556

15

Whiz Nut

253043

16

External Retainer

263500

17

Drive Mount Plate Spacer

902307

18

Control Linkage Pivot

643627

19

Sleeve Bearing with Flange

422559

20

Pivot Linkage with Bearing

603567

21

Washer

257030

22

Cotter Pin

260624

23

Extended Control Arm

643059

24

Woodruff Key

281823

25

Eccentric Roller Assembly

603726

26

Nut

254450

27

External Star Washer

257410

28

Nut

254441

29

Lock Washer

257402

30

Flat Washer

774012

31

Lock Washer

257392

32

Cotter Pin

260648

33

righthand thread Ball Joint

265615

34

Ball Joint Rod

780160

35

Ball Joint Rod

780165

36

Dump Valve Lever

730088

37

Push-On Retainer

262934

38

Clevis Yoke

265537

39

Clevis Pin

261284

40

Hex Bolt

243225

41

1" ID Vinyl Cap

422096

42

Brake Lever Spacer

423705

43

Whiz Nut

253038

44

.25 THK Spacer

902297

45

left/right thread Linkage Rod

780161

46

lefthand thread Ball Joint

265616

47

Nut

254444

48

right Damper

285025

49

left Damper

285030

50

.25 Shock Mount Pin

881103

51

1" Shock Mount Pin

881110

52

Shock Mount Pin

881121

53

External Retainer

263490
