Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

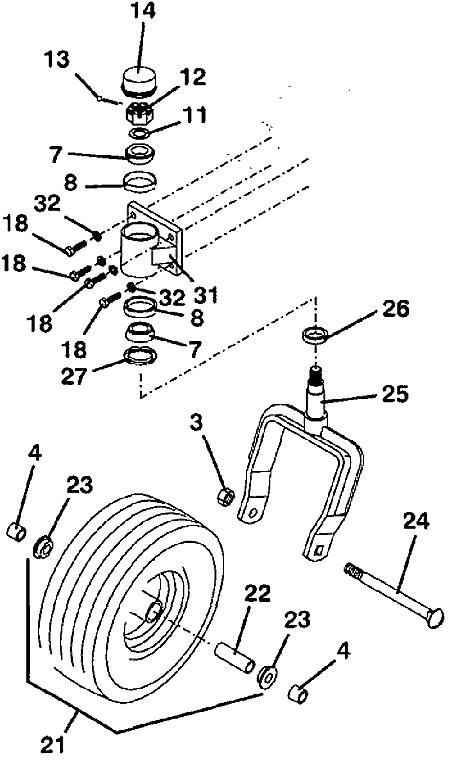

718 • Tail Wheel Options 2

2000

Tail Wheel Options

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

3

Lock Nut

253970

4

Axle Spacer

902425

7

Tapered Bearing

122522

8

Bearing Cup

123522

11

14 GA Bushing Washer

257091

12

Nut

254502

13

Cotter Pin

260668

14

Dust Cap

481432

18

GR 8 Hex Bolt

243334

21

13 x 6.50 x 6 Wheel & Tire with Bearing & Spacer

483865

22

Rear Wheel Bearing Spacer

902475

23

Ball Bearing

120050

24

Carriage Bolt

247725

25

Fork & Lock Nut Assembly

604365

26

Spacer

282615

27

Seal

125855

32

Dual Fork Pivot Housing Assembly

604595

32

Lock Washer

257412
