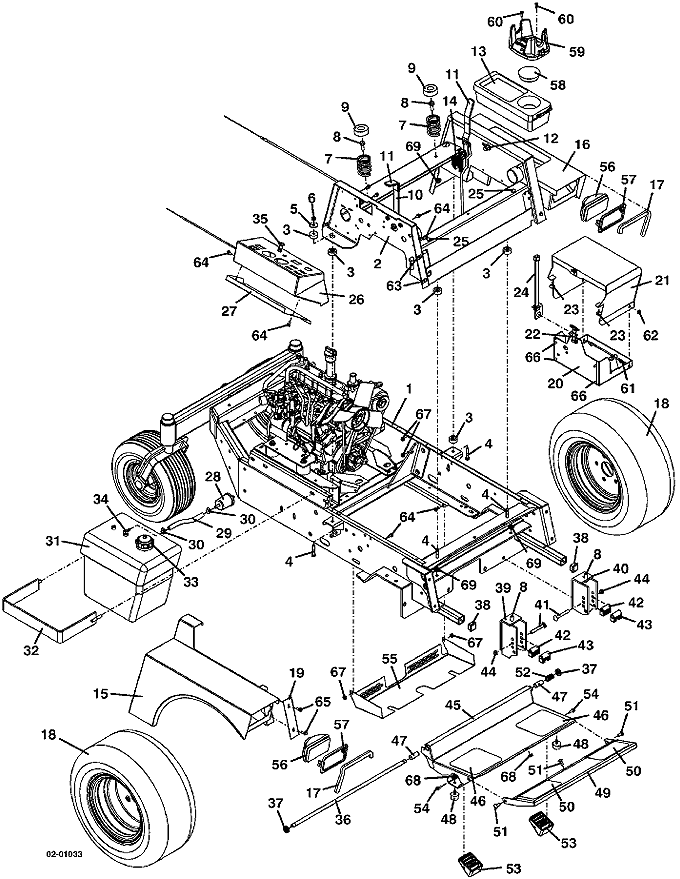

721 • Tractor Assembly

2002

Tractor Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

700 Frame

644230

2

97 Upper Frame

643869

3

Step Bushing

257037

4

Hex Bolt

243220

5

Washer

774020

6

Nylon Insert Nut

253450

7

Compression Spring

283516

8

Whiz Flange Bolt

253203

9

Seat Spring Cap

422127

10

721/725/725G2 Throttle Assembly

604823

-

Control Cable Assembly

323634

11

Handle Grip

422150

12

Spacer

902280

-

Hex Bolt

243330

-

Washer

257040

13

Tool Box

422040

14

12v Voltage Regulator

185530

15

700/900 right Fender with Safety Decal

693210

-

721 right Trim Decal

163208

16

700/900 left Fender with Safety Decal

693211

-

721 left Trim Decal

163209

17

700/900 Fender Edge Trim

822635

18

20 x 10 x 8 Tan Wheel & Turf Tire

483921

-

20 x 10 x 8 Turf Tire

482472

-

21 x 11 x 8 Bar Tread Tire

482478

-

5-Bolt 8 x 6 Wheel

483410

-

5-Bolt 8 x 9.125 Wheel

483415

-

21 x 11 x 8 right Wheel & Bar Tread Tire

483930

-

21 x 11 x 8 left Wheel & Bar Tread Tire

483931

19

right Fender Cover Panel

722062

20

Battery Box Assembly with Strap

603104

21

Battery Box Assembly Lid

603570

22

Rubber Draw Latch

281301

23

Rubber Bumper

424029

24

Battery Hold-Down Strap

603110

25

Rubber Bumper

424015

26

Console with Decal for Liquid-Cooled Engines

693105

27

96 Side Console Fill Panel

721152

28

Kubota Fuel Pre-Filter

101005

29

Fuel Line Hose

821713

30

Screw-type Hose Clamp

280270

31

Gasoline Fuel Tank Assembly (Brown)

603817

32

Fuel Tank Mounting Bracket

643144

33

Cap with Fuel Level

141125

34

Fuel Draw Tube

101818

35

Mechanical Choke

142218

36

700 Foot Platform Pivot Rod

780673

37

Nylon Insert Nut

253470

38

1 inch ID Square Plastic Plug

422065

39

700/900 right QD Deck Mount

643092

40

700/900 left QD Deck Mount

643093

41

Special Carriage Bolt

247280

42

Deck Mount Bushing

282575

43

Floating Deck Mount Bushing

282576

44

Nylon Insert Nut

253460

45

700/900 Adjustable Foot Platform Assembly

604346

46

Foot Rest Tread

420905

47

Nylon Bearing

422615

48

Rubber Bumper

424052

49

700 Foot Platform Extension

603301

50

Foot Rest Tread Extension

420904

51

Carriage Bolt

247130

52

Compression Spring

283312

53

Foot Rest Isolator Block

424100

54

Hex Bolt

243026

55

Hydro Fan Screen

721243

56

Flood Worklamp

182253

57

Snap-Mount Worklamp Bezel

182251

58

3.252 inch diameter Cup Hole Plug

422066

59

Cup Holder

150225

60

Cap Screw

259030

-

Nut

254436

61

Hex Bolt

243005

62

Nut with Nylon Insert

253440

63

Speed Nut

254431

64

Hex Whiz Bolt

253173

65

Hex Whiz Bolt

253175

66

Truss Whiz Bolt

253176

67

Whiz Nut

253025

68

Whiz Nut

253035

69

Whiz Nut

253043

-

Decal Set for Model 721 with Side Console

604297
