Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

721DT • ROPS & Seat Assembly

2015

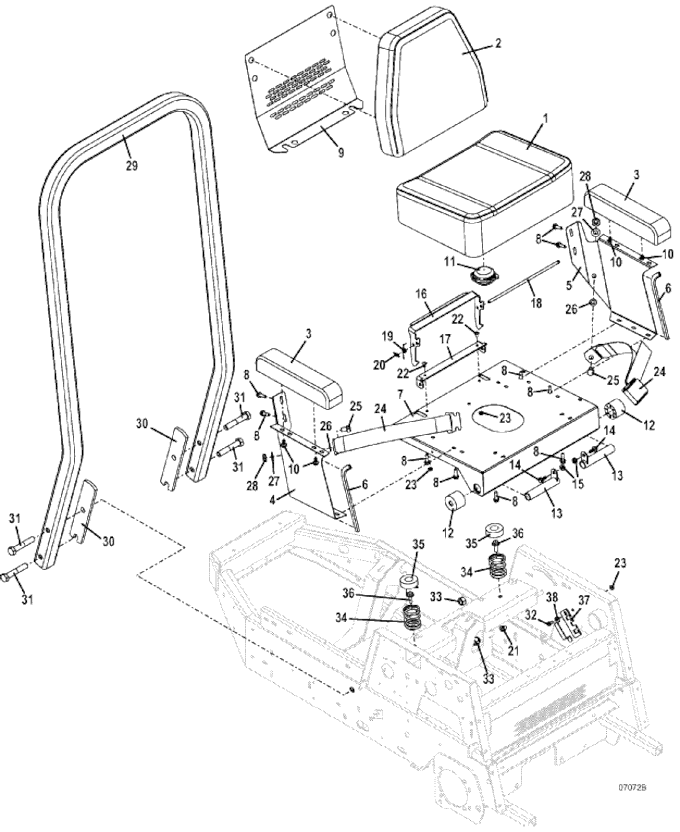

Seat and ROPS Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Cordura Seat Cushion

321518

2

Cordura Back Cushion

321519

3

Contoured Cordura Arm Rest

321523

4

Rt Raised Backrest - Seat Side

723433

5

Lt Raised Backrest - Seat Side

723434

6

Seat Edge Trim

822630

7

Dual Latch Seat Mount

644816

8

Hex Flange Whiz Bolt

253193

9

Raised Backrest - Seat Rein

722884

10

Hex Flange Whiz Bolt

253191

11

Seat Switch

183871

12

Seat Isolator

424095

13

Seat Hinge Pin

644618

14

Hex Flange Whiz Bolt

253192

15

Whiz Nut

253035

16

Seat Dual Latch

754240

17

Dual Latch Mount Bracket

754226

18

Seat Latch Pivot Pin

730230

19

Torsion Spring

284408

20

Cotter Ring

260606

21

Whiz Nut

253043

22

Truss Whiz Bolt

253176

23

Whiz Nut

253025

24

Non Retracting Seat Belt

324200

25

Hex Bolt

243551

26

Washer

257063

27

Washer

257062

28

Nylon Insert Nut

253470

29

700/900 ROPS Tube

324103

30

ROPS Spacer

901645

31

Hex Bolt

243840

32

Hex Whiz Bolt

253173

33

Lock Nut

253970

34

Compression Spring

283516

35

Seat Spring Cap

422127

36

Whiz Flange Bolt

253203

37

Wiring Mount Bracket

774046

38

Wiring Mount Bracket Clamp

722776
