Genuine OEM Grasshopper Lawn Mower Parts

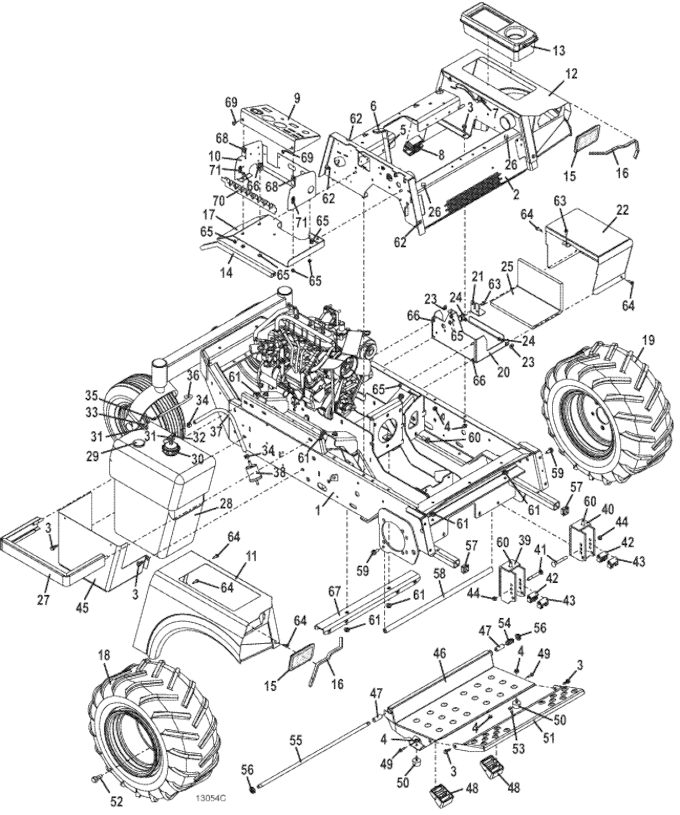

Genuine OEM Grasshopper® Mower Parts Diagrams

721DT • Tractor Assembly

2017

Tractor Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

700T WC Lower Frame

644877

2

Upper Frame

645368

3

Hex Flange Whiz Bolt

253192

4

Whiz Nut

253035

5

700 W/C Throttle Assembly

605820

-

Throttle Control Cable Assembly

323657

-

Throttle Lever Stop

722009

-

Heavy Duty Throttle Stop

722736

6

Handle Grip

422150

7

Spacer

902280

-

Hex Bolt

243335

-

Washer

257040

8

12V Voltage Regulator

185530

9

Console with Decal

693120

10

Console Frame

722875

11

7/900 Right Fender with Decal

693230

12

7/900 Left Fender with Decal

693231

13

Tool Box

422040

14

Console Mount Seal

822501

15

Hole Plug Work Lamp

422079

16

Trim

822632

17

Console Mount

645051

18

right Wheel & Bar Tread Tire, 22 x 11 x 10

483942

19

left Wheel & Bar Tread Tire, 22 x 11 x 10

483943

-

Turf Tire Only, 22 x 10 x 10

482473

-

10" Turf Tire

482477

-

Bar Tread Tire Only, 22 x 11 x 10

482483

-

5 Bolt Wheel Only, 10 x 8.5

483420

-

Wheel & Turf Tire, 22 x 10 x 10

483946

20

Battery Box without Draw Latch

644163

21

Battery Hold Down Bracket

754135

22

Battery Box Lid w/o Lid

644478

23

Washer

257020

24

Nylon Insert Nut

253440

25

Battery Tray Pad

427278

26

Rubber Bumper

424015

27

8 Gallon Tank Mount

644826

28

8.0 Diesel Tank Assembly

604846

29

Fuel Intake Gauge

141144

-

Grommet

424275

30

Screw-On Diesel Fuel Cap

100211

31

Grommet

101875

32

Fuel Tube

363930

33

Fuel Tube

363924

34

Spring Hose Clamp

280261

35

Spring Hose Clamp

280257

36

300S Fuel Return Hose

821741

37

Fuel Line Hose

821716

38

Kubota Fuel Prefilter

101005

39

700/900 right Quick Disconnect Deck Mount

643092

40

700/900 left Quick Disconnect Deck Mount

643093

41

Special Carriage Bolt

247280

42

Deck Mount Bushing

282575

43

Floating Deck Mount Bushing

282576

44

Nylon Insert Nut

253460

45

8 Gallon Tank Shield

723339

46

700/900 Adj Foot Platform Assembly

604346

47

Nylon Bearing

422615

48

Isolator Block Footrest

424100

49

Hex Bolt

243026

50

Rubber Bumper

424052

51

Foot Platform Extension - 700

643304

52

Lug Bolt

248565

53

Carriage Bolt

247130

54

Compression Spring

283312

55

700 Foot Platform Pivot Rod

780673

56

Nylon Insert Nut

253470

57

Square Plastic Plug

422065

58

Tension Rod

780900

59

Whiz Bolt

253200

60

Flange Whiz Bolt

253203

61

Whiz Nut

253043

62

Speed Nut

254431

63

Hex Whiz Bolt

253173

64

Hex Whiz Bolt

253175

65

Whiz Nut

253025

66

Truss Whiz Bolt

253176

67

700T WC Center Crossmember

725511

68

Plastic Retainer Nut

254432

69

Bolt

253180

70

Relay Mount

773102

71

Grommet

424216

72

721DT Decal Set

605420
