Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

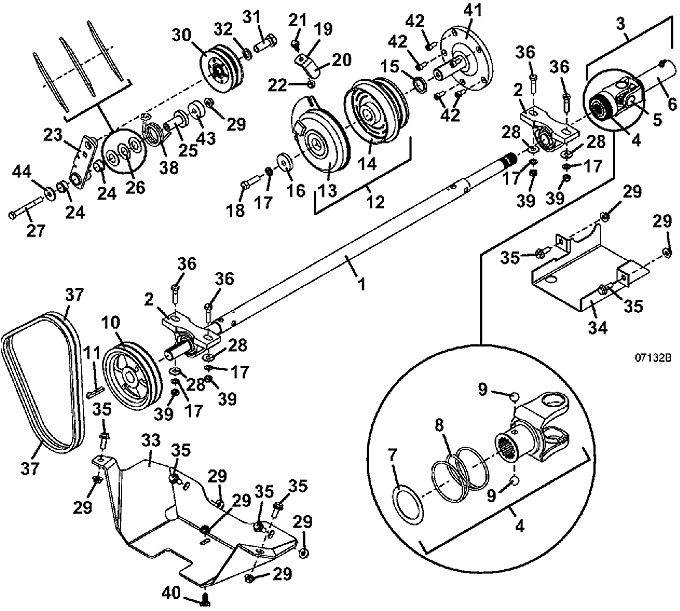

722DT6 • PTO Shaft & Clutch Assembly

2008

PTO Shaft & Clutch Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Power Shaft

644727

2

Pillowblock SC Bearing

122044

-

Set Screw

259305

3

UN Half Sleeve

398914

4

QD Splined Yoke

401019

5

Cross & Bearing

121010

6

Yoke with Sleeve

401017

7

External Retainer

263660

8

Compression Spring

283525

9

Steel Ball

300014

10

Sheave

415620

11

Square Key

281588

12

1.125 Plg Hdbrg S Brake

388771

13

Field Assembly w/Brake (No Longer Available)

388875

14

Armature & Rotor Assembly (No Longer Available)

388866

15

Spacer

902583

16

Washer

883803

17

Lock Washer

257412

18

GR 8 Hex Bolt

243337

19

Clutch Anti-Rotation Bracket

732407

20

Clutch Bracket Cover

422088

21

Hex Flange Whiz Bolt

253192

22

Whiz Nut

253035

23

600T/700T Idler Arm Assembly

824471

24

Oilite Bearing

121756

25

Pedestal PM

833201

26

Spring Washer

257319

27

Hex Bolt

243375

28

Washer

257040

29

Whiz Nut

253043

30

Idler

415610

31

Hex Bolt

243805

32

Lock Washer

257452

33

700DT Sheave Guard

644424

34

PTO Shaft Shield

729287

35

Whiz Flange Bolt

253203

36

Hex Bolt

243340

37

Belt Set(Includes 2 Belts)

381914G

38

Torsion Spring

284428

39

Nut

254450

40

Carriage Bolt

247253

41

Clutch Stub Shaft

824637

42

M8 Socket Head Screw

270075

43

Idler Arm Spacer

902315

44

Washer

774020
