Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

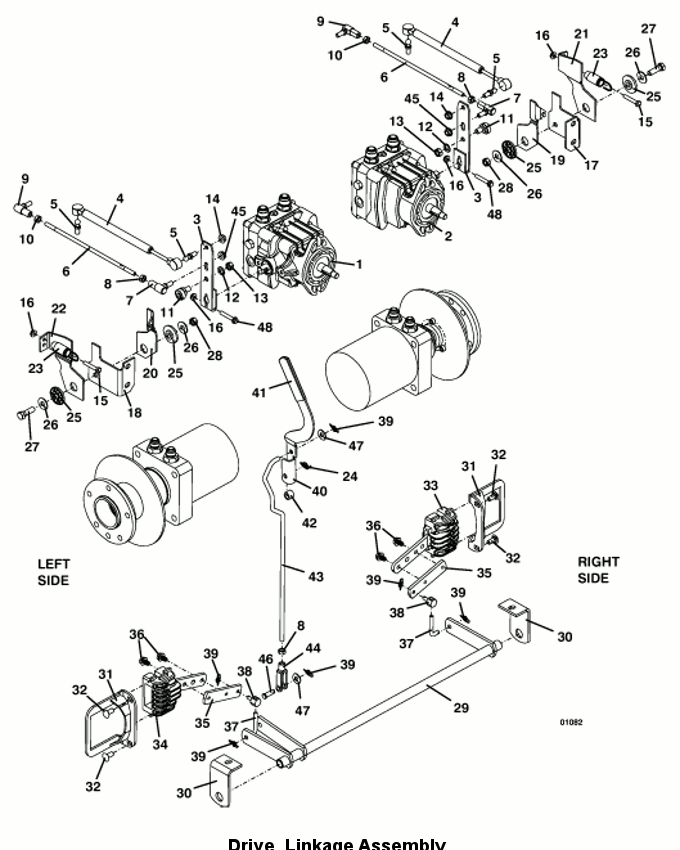

725A • Drive Linkage Assembly

2003

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Hydro Pump with Shaft - left

391462

-

Seal

125165

-

Charge Cover Square Seal Ring

130020

2

Hydro Pump with Shaft - right

391463

-

Seal

125165

-

Charge Cover Square Seal Ring

130020

3

Pump Control Arm - right

725338

4

Damper

285031

5

Ball Stud

265680

6

Steering Linkage Pump Rod

780164

7

Ball Joint - Lefthand Thread

265616

8

Nut

254444

9

Ball Joint - Righthand Thread

265615

10

Nut .312-24

254441

11

Eccentric Roller Assembly

603726

12

Washer

257410

13

Nut .375-16

254450

14

Whiz Nut

253035

15

Hex Bolt .250-20 x 1.500

243035

16

Whiz Nut .250-20

253025

17

Neutral Return Mount - RT

754120

18

Neutral Return Mount - LT

754121

19

Neutral Return Arm - M1 RT

729138

20

Neutral Return Arm - M1 LT

729139

21

Neutral Return Front Arm - RT

729136

22

Neutral Return Front Arm- LT

729137

23

Extension Spring

283823

24

Cotter Ring

260608

25

Neutral Return Pivot Bearing

822304

26

Washer

257040

27

Hex Bolt .375-16 x 1.25

243335

28

Lock Nut .375-16

253890

29

Brake Pivot Linkage Rod

644539

30

Brake Pivot Mount - 1.281

732616

31

Caliper Mount

644121

32

Carriage Bolt .312 x .75

247130

33

Brake Assy - FT MNT, RT Side, M1-LT Side

481102

-

Brake Pad Kit

603150

34

Brake Assy - FT MNT, LT Side, M1-RT Side

481103

-

Brake Pad Kit

603150

35

Brake Mount - 7.75 Rotor

776174

36

Whiz Bolt

253189

37

Brake Linkage Rod

780158

38

Brake Linkage Pin

880926

39

Cotter Ring

260606

40

Brake Handle

644035

41

Grip Handle

422150

42

Brake Lever Spacer

423705

43

Brake Linkage Arm

644036

44

Clevis Yoke

265537

45

Whiz Nut .312-24

253038

46

Clevis Pin .312 x 1

261284

47

Hex bolt .312-18 x .750

243195

48

Brake Strap - 700 Series

782851
