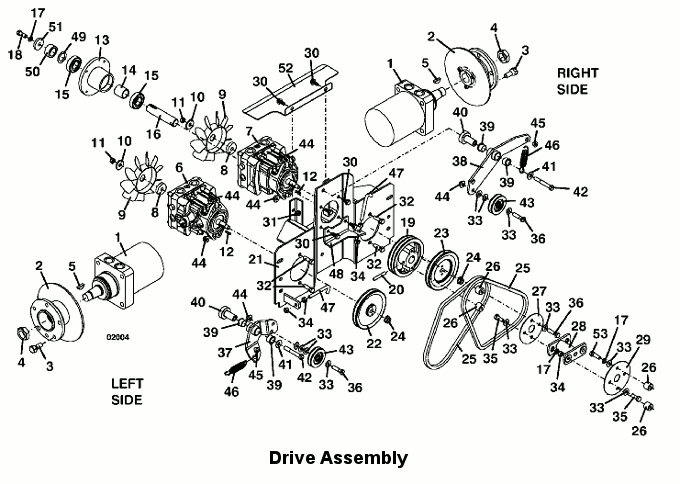

1

Wheel Motor w/Hub

603602

2

Wheel Hub - Bolt on Rotor

604440

-

Socket Head Screw

259592

-

Brake Rotor - 8.0

775192

3

Lug Bolt

248565

4

Nut

254522

5

Key Woodruff

281860

6

Hydro Pump - LT

391462

-

Seal

125165

-

Seal Ring - Charge Cover - Square

130020

7

Hydro Pump - RT

391463

-

Seal

125165

-

Seal Ring - Charge Cover - Square

130020

8

Hub - Fan Mount 10A

885123

9

Fan - 7" Nylon CW

320857

10

Washer

774020

11

Nut

254452

12

Key Rectangle

281562

13

Spindle Housing - Vac Fan

320522

14

Spacer - Drive Bearing

903650

15

Ball Bearing - 2 Reg Seal 25mm

110081

16

Drive Shaft - 700G2

882052

17

Lock Washer

257412

18

Hex Bolt

243331

19

Sheave

415037

20

Roll Pin

261061

21

Pump Mount - 16AG2

644629

22

Sheave

415022

23

Sheave

415021

24

Nut - Flange

253060

25

Belt

381537

26

Spacer - G2 Drive

902328

27

Flex Disc Coupling

821530

28

Coupling Connector - 2.968

644143

29

Flex Disc Coupling

821531

30

Bolt Whiz Hex Flange

253192

31

Nut Whiz

253035

32

Hex Bolt

243335

33

Washer

257030

34

Nut

254450

35

Hex Bolt

243330

36

Hex Bolt

243340

37

Idler Arm Assembly

824491

38

Idler Arm Assembly

824490

39

Oilite Bearing

121756

40

Pedestal Bearing

121650

41

Washer

257040

42

Hex Bolt

243360

43

Idler

604449

44

Whiz Nut

253043

45

Nylon Bearing

422520

46

Extension Spring - w/Swivel

283819

47

J Bolt - Idler Adjustment

730391

48

Spring Bracket - 928

725028

49

Washer

257106

50

Spacer

282630

51

Washer

883801

52

G2 Fan Shield

723154

53

Hex Head M8

271078

54

Screw - Socket Head

259640

55

Washer - Star Internal

257430

56

Nut - Whiz

253066
