Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

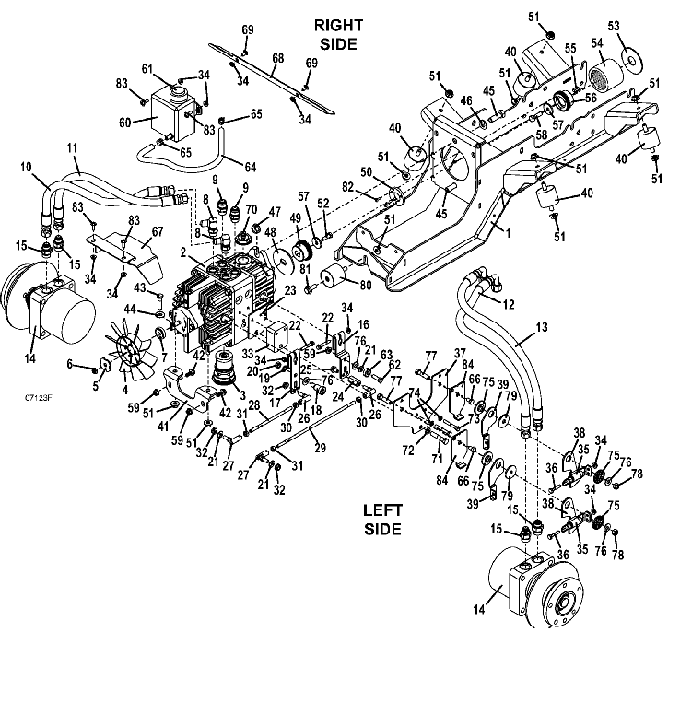

725DT6 • Drive Assembly- Serial #6214079 & Above

2012

Drive Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Drive Train Mount

644879

2

Parker 16cc Tandem Hydro

391470

3

Tandem Transmission Filter

130505

4

8.3" T6 Fan

130434

5

Fan Retainer Washer

130432

6

Nylon Insert Nut

253461

7

Fan Hub

130433

8

O-Ring Adapter

360061

9

Fitting Adapter

360064

10

Hose Assembly

424383

11

Hose Assembly

424384

12

Hose Assembly

424385

13

Hose Assembly

424386

14

T6 Wheel Motor with Hub

603614

15

O-Ring Adapter

360063

16

700T WC Bent Control Arm

729662

17

600T/700T Control Arm

729661

18

600T/700T Eccentric Roller Assembly

603734

19

External Star Washer

257410

20

Nut

254450

21

Washer

257032

22

Hex Whiz Bolt

253182

23

700T Return Mount Spacer

774296

24

Neutral Return Spacer

783730

25

Hex Whiz Bolt

253185

26

Righthand Thread Ball Joint

265615

27

Lefthand Thread Ball Joint

265616

28

Left/Right Steering Rod

780169

29

Left/Right Steering Rod

780172

30

Nut

254441

31

Nut

254444

32

Whiz Nut

253038

33

Plastic Return Spacer

422041

34

Whiz Nut

253025

35

Extension Spring

283823

36

Hex Bolt

243035

37

600T/700T Neutral Return Mount

774299

38

Return Arm

729639

39

Neutral Return Arm

729398

40

Vibration Isolator

424073

41

Front Pump Mount

725563

42

Hex Flange Whiz Bolt

253192

43

Hex Bolt

243340

44

Washer

257040

45

Hex Bolt

243570

46

Washer

257062

47

Whiz Nut

253066

48

DD Washer

774175

49

Coupler Hub

388577

50

Coupling Stabilizer

424151

51

Whiz Nut

253043

52

Hex Bolt

243206

53

3" (outer dimension) Washer

774176

54

Nylon Coupler Sleeve

388560

55

Square Key

281580

56

Flex Coupler with Holes

831034

57

Washer

774020

58

GR 8 Hex Bolt

243337

59

Whiz Nut

253035

60

Oil Expansion Tank

421981

61

Vented Cap w/Gasket

421991

62

Hex Bolt

243205

63

Double Seal Ball Bearing

120025

64

Fuel Hose

821730

65

Spring Hose Clamp

280261

66

Hex Bolt

243186

67

Fan Shroud

722984

68

Coupler Shield

722983

69

Truss Whiz Bolt

253176

70

T2 Expansion Tank Adapter

130510

71

Hex Bolt

243352

72

Lock Washer

257412

73

Hex Bolt

243040

74

Lock Washer

257392

75

Neutral Return Pivot Bearing

822304

76

Washer

257030

77

Hex Bolt

243340

78

Lock Nut

253890

79

Washer

774292

80

Vibration Isolator

424071

81

Whiz Bolt

253200

82

Truss Machine Screw

250164

83

Philips Truss Whiz Bolt

253179

84

600T/700T Return Adjustment Plate

729660
