Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

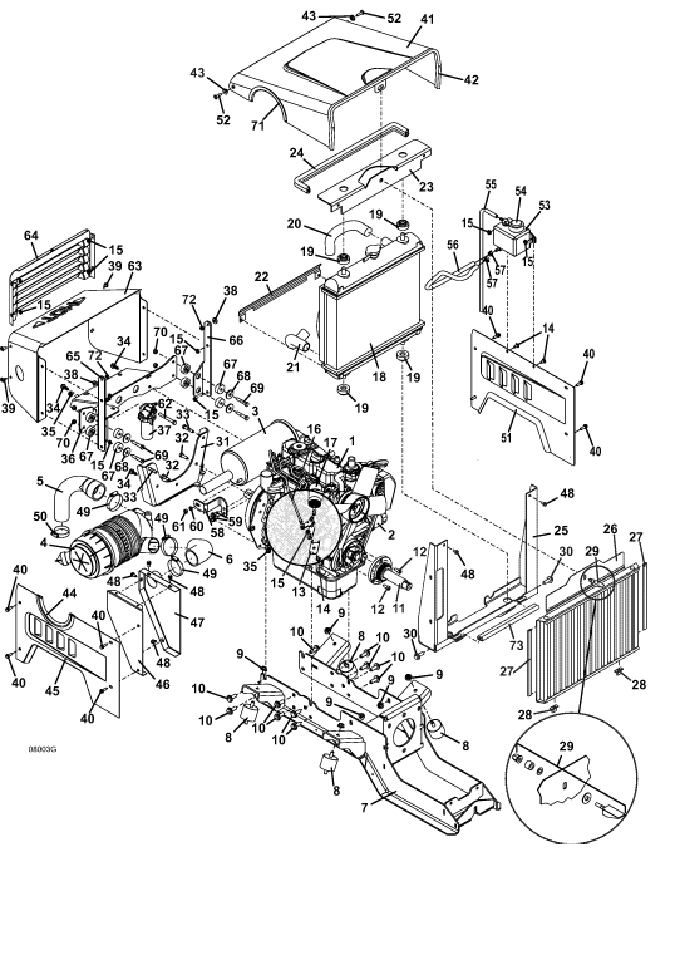

725DT6 • Engine Assembly

2014

Engine Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Kubota Diesel Engine

100179

2

Kubota Oil Filter

100800

3

Kubota Muffler

101235

-

Kubota Exhaust Flange Gasket

101040

4

Nelson 90 Degree Air Cleaner

100207

-

Clip for Air Cleaner Cover

100197

-

Air Cleaner Cover

100199

-

Dust Ejector

100202

-

Outer HD Air Filter

100936

-

Inner HD Air Filter

100937

5

Breather / Manifold Hose

424526

6

Breather Inlet Hose

424520

7

Drive Train Mount

644879

8

Vibration Isolator

424073

9

Whiz Nut

253043

10

Hex Bolt

271121

11

Shaft

824413

12

M8 Socket Head Screw

270075

13

Extension Linkage

723063

14

Truss Whiz Bolt

253176

15

Whiz Nut

253025

16

Manual Stop Lever Extension

246880

-

Red Vinyl Cap

422092

17

Fuel Valve Solenoid

101046

18

Kubota 902 Radiator

101612

19

Radiator Mount Isolator Bushing

101080

20

Upper Radiator Hose

101058

21

Lower Radiator Hose

101059

22

Fan Shield

721006

23

Radiator Channel Clamp

729327

24

Hood Bulb Seal

822518

25

700DT Lower Radiator Mount

644655

26

Grille w/Guard Assembly

604382

27

Radiator Grille Trim

822636

28

Rear Belt Shield Isolator

422090

29

Swell Latch Assembly

604805

30

Flange Whiz Bolt

253203

31

PTO / Idler Mount

645566

32

Hex Head

271023

33

Hex Head M8 Bolt

271055

34

Hex Flange Whiz Bolt

253192

35

Whiz Nut

253035

36

700DT Rear Hood Support

645851

37

Kubota Oil Filter

101000

38

Hood Hinge Spacer

901324

39

Bolt

253180

40

Hex Whiz Bolt

253175

41

725D/932 Engine Hood W/A

644438

42

Front Hood Trim

822639

43

Step Bushing

422508

44

Air Cleaner Trim Seal

822513

45

725DT6 Right Side Hood

722920

46

Air Intake Box Mount

644066

47

Air Intake Box

644059

48

Hex Whiz Bolt

253173

49

Screw Type Hose Clamp

280305

50

Screw Type Hose Clamp

280303

51

725DT6 Left Side Hood

762521

52

Bolt

253181

53

Water Expansion Tank

421980

54

Reservoir Cap w/Gasket

421990

55

Clear Vent Hose

821748

56

Hose

821749

57

Spring Hose Clamp

280260

58

Muffler Support Strap

732604

59

Flange Hex Bolt w/Ser

271021

60

Lock Washer

257402

61

Hex Nut

274145

62

Whiz Bolt

253197

63

Rear Hood Box Panel

722919

64

Rear Hood Grille

645270

65

Right 700T Hood Support Upright

725576

66

Left 700T Hood Support Upright

725577

67

Rubber Step Bushing

424005

68

Washer

774020

69

Hex Bolt

243220

70

Nut with Nylon Insert

253450

71

Trim

822632

72

Nut w/Nylon Insert

253440

73

Lower Radiator Seal

822507
