Genuine OEM Grasshopper® Mower Parts Diagrams

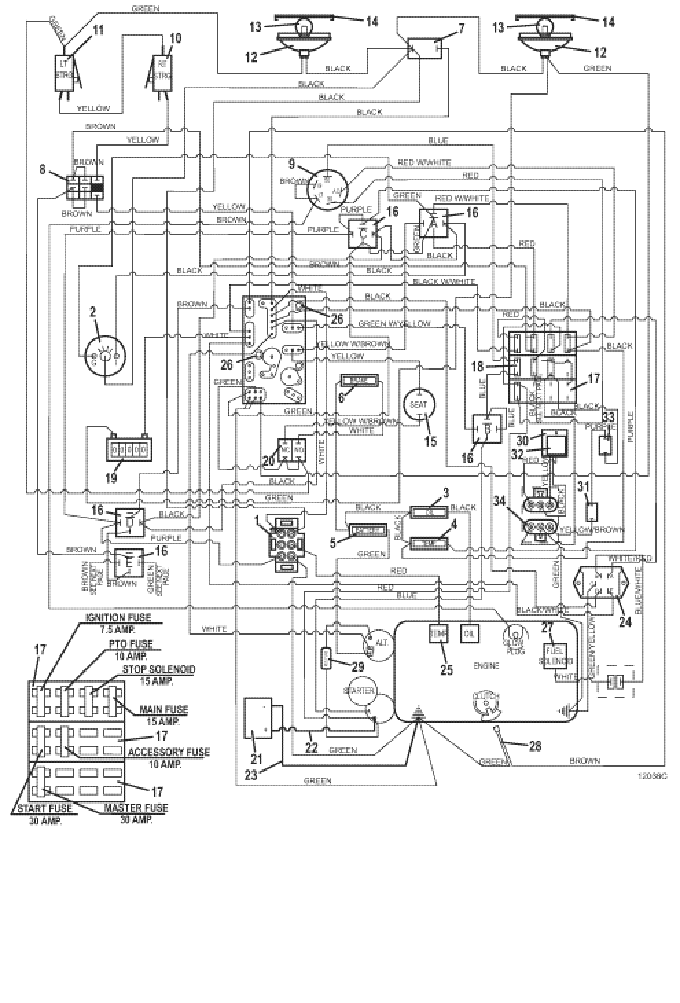

725DT6 • Wiring Diagram Above Serial #6413562

2014

Wiring - Electrical System

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Zoned Electric Temperature Gauge

141165

2

Voltmeter Gauge

141203

3

Oil Indicator Light

182327

4

Temperature Indicator Light

182328

5

Battery Indicator Light

182325

6

Brake Indicator Light

182326

7

Rocker Switch

184179

8

Switch Push/Pull

183925

9

Switch Key Sealed - Kubota

183827

-

Kubota Double Notch Ignition Key

101106

10

Lever Switch

183860

-

Steering Switch Mount - right

720160

11

Lever Switch

183860

-

Steering Switch Mount - left

720161

12

Worklamp Flood

182253

13

Light Bulb for Headlight

182005

14

Snap Mount Worklamp Bezel

182251

15

Twist-in Seat Switch

183871

16

Relay 12V DC w/Diode

184266

17

Fuse Block

181722

-

1 Wire Fuse Clip

184458

-

2 Wire Fuse Clip

184460

-

Double Fuse Clip

184472

18

30 amp Auto ATC Fuse

181470

-

7.5 amp Auto ATC Fuse

181460

-

10 amp Auto ATC Fuse

181462

-

15 amp Auto ATC Fuse

181465

19

Snap In Hour Meter

141551

20

Brake Interlock Switch

183894

21

12 Volt Side Post Wet Battery

180130

-

12 Volt Side Post Dry Battery

180131

-

Hex Bolt

243309

22

14" Battery Cable - Red

180313

-

Alternator Terminal Red Boot

425215

-

Starter Terminal Boot

425219

-

Battery Terminal Boot

425223

23

20" Battery Cable - Black

180282

24

D902 Switch Interlock Manual

184217

25

Temperature Sender

141224

26

PC Board Support Spacer

423690

27

Fuel Valve Solenoid

101046

28

Pigtail Cable Assembly

388840

29

Inline Regulator Fuse Holder

604888

-

40 amp Auto ATC Fuse

181475

30

Mount Tilt Switch

722747

31

Solenoid Hydraulic Valve

144950

32

Power Components Tilt

183710

33

Sealed Dome Switch

183940

-

Black Button Cup

183943

-

Momentary Toggle

183954

34

3-Way Male Connector

184973

35

725dt6 2013 Wiring Assembly

605896

return to 725DT6 index return to top of page
