Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

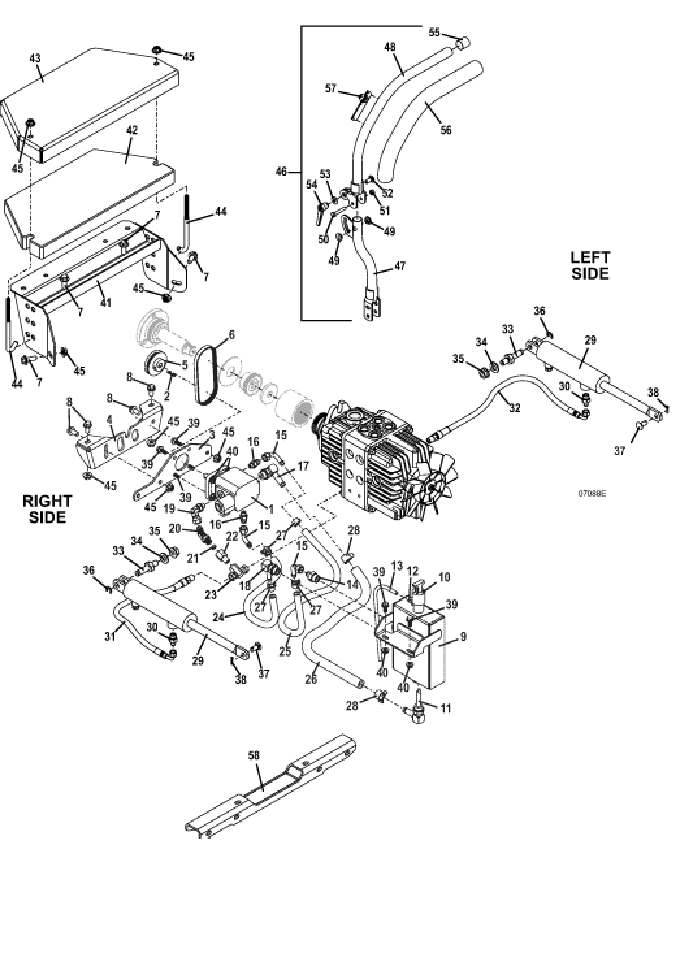

725DT6 • Optional Hydraulic Lift Assembly

2015

Optional Hydraulic Lift Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Counterclockwise Hydraulic Pump with Solenoid Valve

290074

-

Seal

125166

-

Hydraulic Solenoid Valve

144950

2

Square Key

281540

3

Auxilary Pump Mount Pivot Plate

775137

4

700WC Auxiliary Pump Mount W/A

645559

5

Sheave

831429

6

Belt

381390

7

Flange Whiz Bolt

253203

8

Whiz Bolt

253200

9

Auxiliary Oil Tank

644845

10

M1 Oil Reservoir Dipstick

100728

11

Fitting with Strainer

603330

12

Straight Barbed Fitting

363826

13

Clear Vent Hose

821723

14

O-Ring Flare Fitting Adapter

360080

15

Fitting

363846

16

Adapter

360053

17

Adapter

360082

18

Adapter

360062

19

O-Ring Adapter

360044

20

O-Ring Adapter

360043

21

Flow Restrictor

780507

22

O-Ring Adapter

360045

23

Swivel Tee Adapter

360005

24

Hydraulic Hose

821787

25

Hydraulic Hose

821773

26

Hydraulic Hose

821800

27

Spring Hose Clamp

280264

28

Spring Hose Clamp

280266

29

Hydraulic Cylinder

290021

-

Hydraulic Lift Cylinder Head Seal Kit

290096

30

O-Ring Adapter

360052

31

Hose Assembly

424540

32

Hose Assembly

424545

33

Cylinder Mount Pin with Groove

887119

34

Washer

257062

35

Whiz Nut

253066

36

External Retainer

263500

37

Clevis Pin

261339

38

Cotter Pin

260648

39

Hex Flange Whiz Bolt

253192

40

Whiz Nut

253035

41

700/900 Weight Mount

644915

42

750 Counterweight

323951

43

50 lb. Weight Cover

729691

44

Hook Bolt

240151

45

Whiz Nut

253043

46

Right Steering Lever Assembly with Switch - Std Adjustment
(includes items 47 through 57)

603804

47

Lower Right Fldg Steering Lever with Lift

824579

48

Upper Right Std Adjustable Steering Lever

824577

49

Step Bushing

422508

50

Hex Bolt

243035

51

Lock Nut

253850

52

Carriage Bolt

247130

53

Flat Washer

257019

54

Adjustable Lever Nut

254438

55

.75 inch ID Vinyl Cap

422095

56

Handle Grip

422179

57

Hydraulic Lift Switch/Mount Assembly

604799

-

Black Button Cup

183943

58

700 Water Cooled Model Hydraulic Lift Center Crossmember

645204
