Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

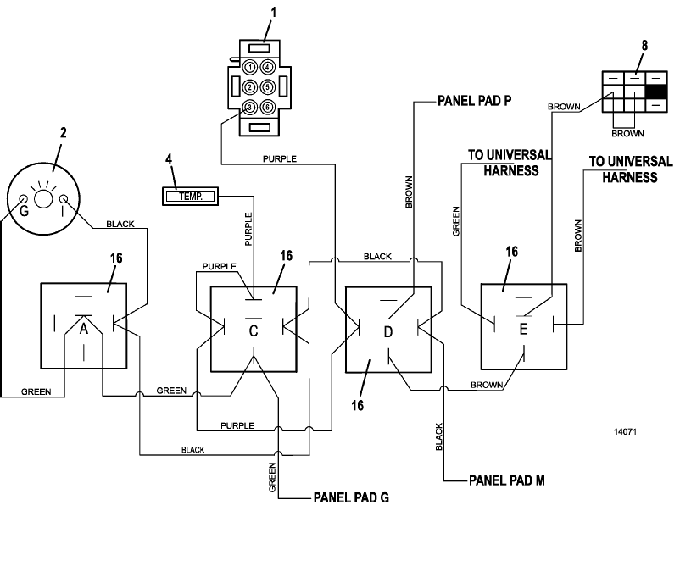

725DT6 • Wiring Diagram, High Temp

2017

Wiring - Electrical System

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Zoned Electric Temperature Gauge

141165

2

Voltmeter Gauge

141203

4

Temperature Indicator Light

182328

8

Switch Push/Pull

183925

16

12V DC Relay w/Diode

184266

return to 725DT6 index return to top of page
