725G2 • Wiring & Lights

2005

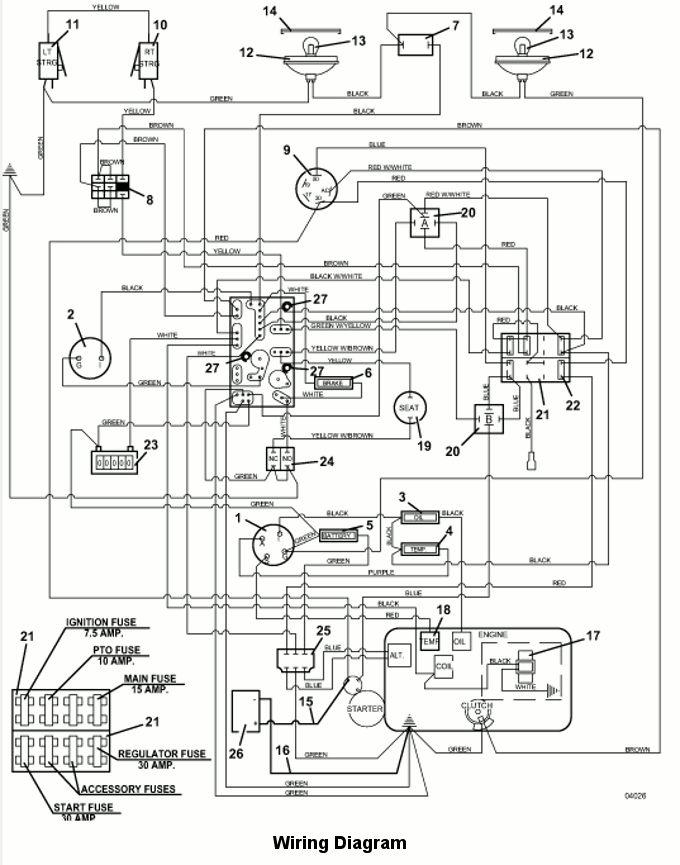

Wiring Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Zoned Electric Temperature Gauge

141160

2

Voltmeter Gauge

141200

3

Oil Indicator Light

182327

4

Temperature Indicator Light

182328

5

Battery Indicator Light

182325

6

Brake Indicator Light

182326

7

Rocker Switch

184179

8

Switch Push/Pull

183925

9

Switch Key Sealed - Kubota

183827

-

Kubota Double Notch Ignition Key

101106

10

Lever Switch

183860

-

Steering Switch Mount - right

720160

11

Lever Switch

183860

-

Steering Switch Mount - left

720161

12

Worklamp Flood

182253

13

Light Bulb for Headlight

182005

14

Snap Mount Worklamp Bezel

182251

15

Snap Mount Worklamp Bezel

180310

-

Starter Terminal Boot

425219

16

Snap Mount Worklamp Bezel

180276

17

Electric Fuel Pump

101510

18

Temperature Sender

141222

19

Twist-in Seat Switch

183871

20

12V DC Relay

184272

-

Type 1 6mm Push-On

184570

-

.250 Fast-On Terminal

184581

-

5-Way Female Connector

184926

21

Fuse Block

181722

-

1 Wire Fuse Clip

184458

-

2 Wire Fuse Clip

184460

-

Double Fuse Clip

184472

22

30 amp Auto ATC Fuse

181470

-

15 amp Auto ATC Fuse

181465

-

10 amp Auto ATC Fuse

181462

-

7.5 amp Auto ATC Fuse

181460

23

Snap In Hour Meter

141551

24

Brake Interlock Switch

183894

25

Voltage Regulator 12V

185530

26

12 Volt Side Post Wet Battery

180130

-

12 Volt Side Post Dry Battery

180131

-

12 Volt Side Post Dry Battery

243309

-

12 Volt Side Post Dry Battery

644163

-

12 Volt Side Post Dry Battery

644478

-

12 Volt Side Post Dry Battery

754135

27

PC Board Support Spacer

423690

28

721/725 '96 Wiring Assembly

604976

29

721/725 Console Decal

161132
