Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

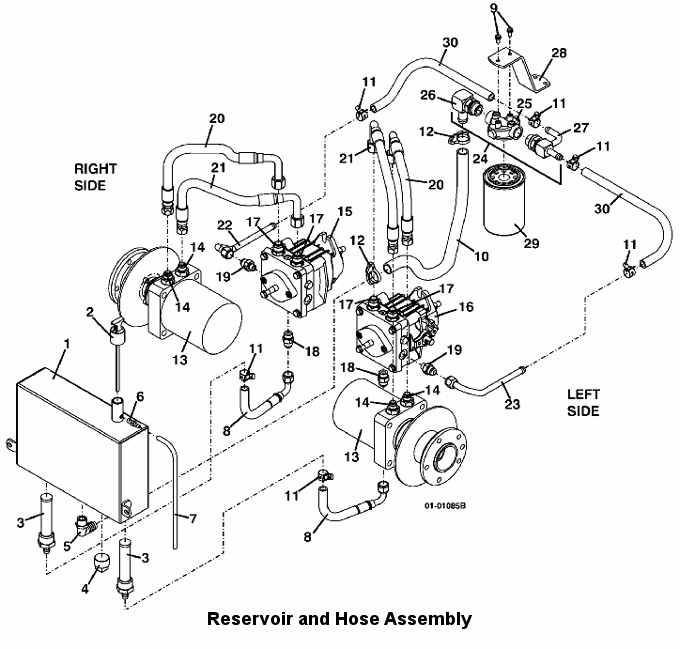

727A • Reservoir and Hose Assembly

2003

Engine Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

RESERVOIR ASSY - 01 - 700G2

603703

2

DIPSTICK - OIL RES PLASTIC

100729

3

STRAINER

366556

4

PLUG

365535

5

FITTING - NYLON

363853

6

FITTING - BARB STRAIGHT

363826

7

HOSE - VENT CLEAR

821724

8

HOSE ASSY

424331

9

BOLT WHIZ HEX

253173

10

HOSE .75 HYDRAULIC

821804

11

CLAMP - HOSE SPRING

280265

12

CLAMP - HOSE - PLASTIC SNAP

280281

13

WHEEL MOTOR W/HUB

603602

14

ADAPTER O-RING

360063

-

O-RING

126527

-

O-RING

126537

15

HYDRO PUMP - RT

391463

-

SEAL

125165

-

SEAL RING - CHARGE COVER SQUARE

130020

16

HYDRO PUMP - LT

391462

-

SEAL

125165

-

SEAL RING - CHARGE COVER SQUARE

130020

17

ADAPTER FITTING

360064

-

O-RING

126529

-

O-RING

126535

18

FITTING STEEL O-RING BOSS

363832

19

ADAPTER FITTING

360081

20

HOSE ASSY

424371

21

HOSE ASSY

424372

22

TUBE ASSY

424602

23

TUBE ASSY

424603

24

FILTER BASE ASSY G2

101020

25

BASE - FILTER

101027

26

ADAPTER O-RING 12 BEAD

360076

27

ADAPTER O-RING W/90 ELBOW

360074

28

BASE - OIL FILTER

733124

29

FILTER - OIL TRANSMISSION

100860

30

HOSE - HYDRAULIC

821799
