Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

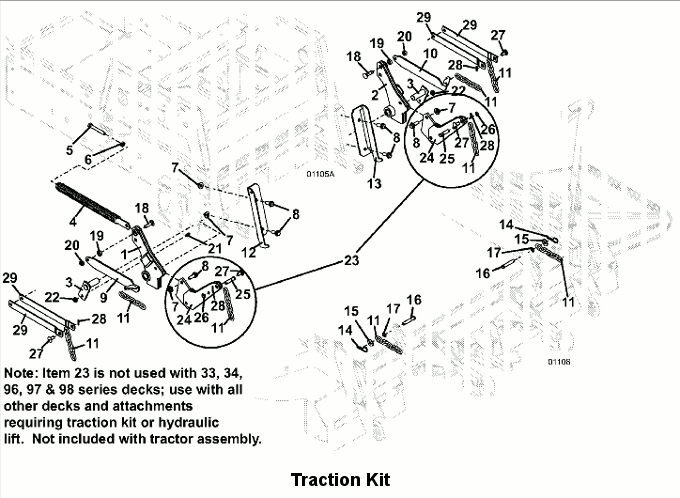

727A • Traction Kit

2003

Traction Kit

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

ROCKER W/O EXTENSION RT

603701

-

BEARING OILITE

121764

2

ROCKER W/O EXTENSION LT

603702

-

BEARING OILITE

121764

3

PIN - TRACTION KIT W/A

644635

4

SPRING ASSEMBLY - TRACTION KIT

605760

5

HEX BOLT

243361

6

NUT

254450

7

CARRIAGE BOLT

247274

8

BOLT WHIZ

253202

9

BRACKET - CHAIN MOUNT RT

755018

10

BRACKET - CHAIN MOUNT LT

755019

11

CHAIN - LIFT

820320

12

BRACKET - CHAIN GUIDE RT

754031

13

BRACKET - CHAIN GUIDE LT

754032

14

HAIR PIN

260523

15

WASHER

257040

16

CLEVIS PIN

261362

17

RETAINER - PUSH ON

262950

18

CARRIAGE BOLT

247254

19

SPACER .25 - TRACTION KIT

881095

20

NUT LOCK

253890

21

BOLT WHIZ HEX FLANGE

253192

22

NUT WHIZ

253035

23

ROCKER EXTENSION KIT 700/900

604708

24

EXTENSION - ROCKER ARM

644706

25

CLEVIS PIN

261355

26

RETAINER - PUSH ON

262950

27

CLEVIS PIN

261336

28

COTTER PIN

260648

29

STRAP - LIFT 600 W/SL DECK

732410
