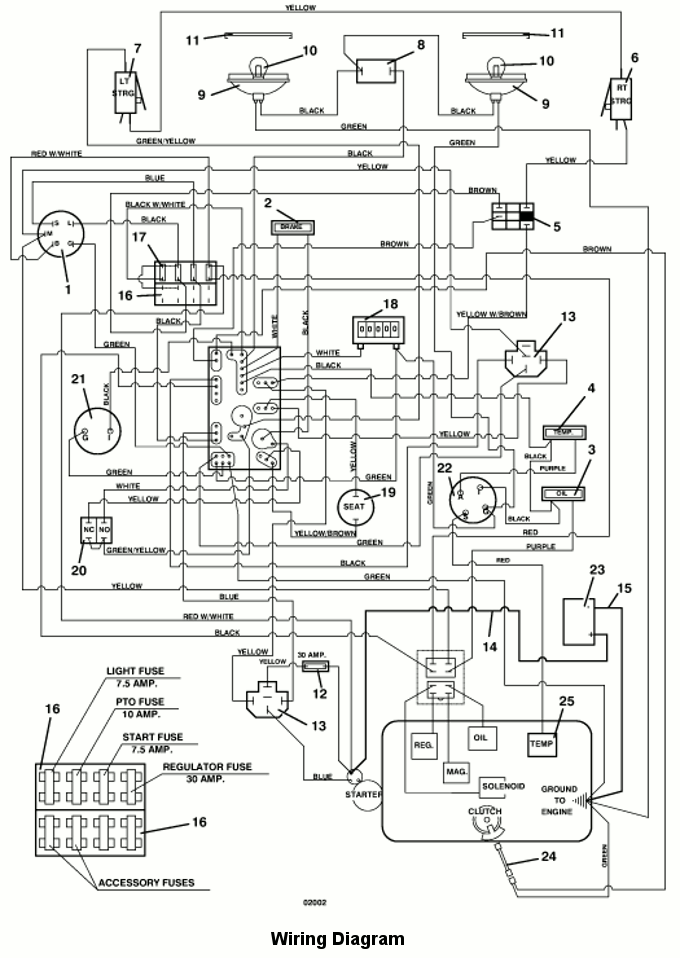

727A • Wiring Diagram

2003

Wiring Diagram

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

SWITCH - KEY B&S KOHLER

183806

-

KEY IGNITION W/COVER

101101

-

NUT

254498

-

PANEL PLASTIC

422078

2

LIGHT INDICATOR - BRAKE

182326

3

LIGHT INDICATOR - OIL

182327

4

LIGHT INDICATOR - TEMP

182328

5

SWITCH - PUSH/PULL

183925

6

SWITCH - LEVER

183860

-

MOUNT - STEERING SWITCH RT

720160

7

SWITCH - SEAT

183870

-

MOUNT - STEERING SWITCH LT

720161

8

SWITCH - ROCKER

184179

9

WORK LAMP - FLOOD

182253

10

LIGHT BULB - WORK LAMP

182005

11

BEZEL SNAP MOUNT WORK LAMP

182251

12

FUSE HOLDER - INLINE AUTO

181735

-

FUSE - AUTO - ATC 30

181470

13

TERMINAL - .250 FASTON

184581

-

CONNECTOR - 5 WAY FEMALE

184926

-

RELAY 12VDC W/MOUNT

184271

-

TYPE 1 6MM PUSHON

184570

14

CABLE - BATTERY 16 RED

180315

-

BOOT BATTERY TERMINAL

425219

15

CABLE - BATTERY 16 BLACK

180276

16

FUSE BLOCK

181722

-

FUSE CLIP - 1 WIRE

184458

-

FUSE CLIP - 2 WIRE

184460

-

FUSE CLIP - DOUBLE CLIP

184472

17

FUSE - AUTO ATC - 30

181470

-

FUSE - AUTO ATC - 7.5

181460

-

FUSE - AUTO ATC - 10

181462

18

HOUR METER - SNAP IN

141551

19

SWITCH - SEAT

183870

20

SWITCH BRAKE - INTERLOCK

183894

21

GAUGE - VOLTMETER

141200

22

GAUGE - TEMP ZONED ELECTRIC

141160

23

BATTERY - 12 VOLT - WET

180125

-

BATTERY - 12 VOLT - DRY

180126

-

BATTERY BOX - G2 AC

644099

-

COVER - BATTERY AC

644162

24

CABLE ASSEMBLY - PIGTAIL

388840

25

TEMPERATURE SENDER

141218

26

WIRING ASSEMBLY - 725A

604980

27

DECAL - CONSOLE 725A

161133
