Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

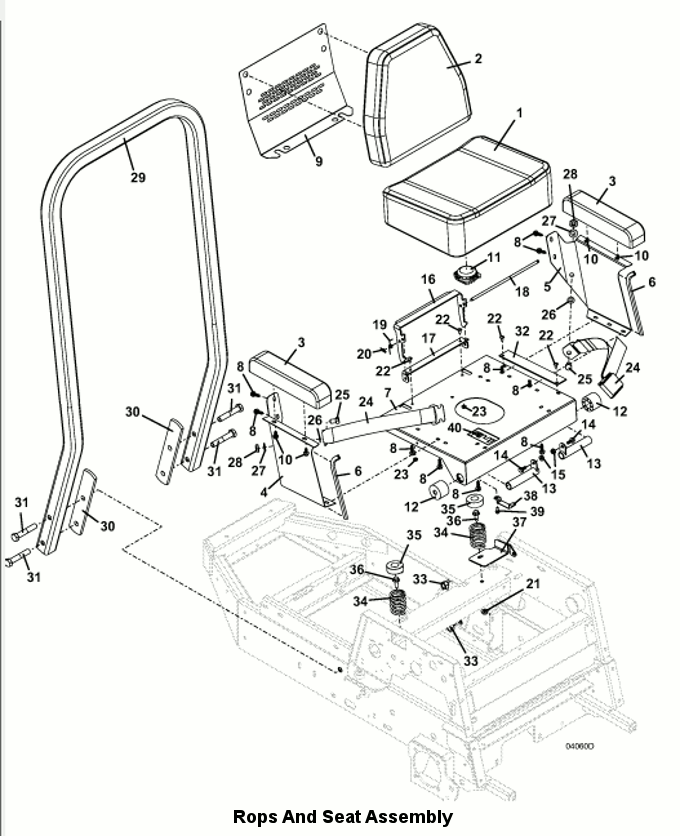

727K2 • ROPS & Seat Assembly

2006

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Seat Cushion - Cordura

321518

2

Back Cushion - Cordura w/Logo

321520

3

Contoured Armrest - Cordura

321523

4

Extended Armrest Seat Side Member - right

723386

5

Extended Armrest Seat Side Member - left

723387

6

Seat Edge Trim

822630

7

Seat Mount - Dual Latch

644816

8

Hex Flange Whiz Bolt

253193

9

Seat Reinforcement Panel

722388

10

Hex Flange Whiz Bolt

253191

11

Seat Switch - Twist In

183871

12

Seat Isolator

424095

13

Seat Hinge Pin

644618

14

Hex Flange Whiz Bolt

253192

15

Whiz Nut

253035

16

Dual Latch - Seat

754240

17

Bracket - Dual Latch Mount

254226

18

Pivot Pin - Seat Latch

730230

19

Torsion Spring

284408

20

Cotter Ring

260606

21

Nut Whiz

253043

22

Bolt Whiz Truss

253176

23

Nut Whiz

253025

24

Seat Belt - Non Retract

324200

25

Hex Bolt

243551

26

Washer

257063

27

Washer

257062

28

Nut - Insert - Nylon

253470

29

Tube - ROPS - 700/900

324103

30

Spacer - ROPS - 700/900

901645

31

Hex Bolt

243840

32

Flap - Seat Paner - 700/900

424176

33

Nut - Lock

253970

34

Spring - Compression

283516

35

Cap - Seat Spring

422127

36

Bolt Whiz Flange

253203

37

Brake Pin Reinforcement

729230

38

Clamp - Wiring Mount Bracket

722776

39

Bolt Whiz Hex

253173

40

Speed Nut

254431
