Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

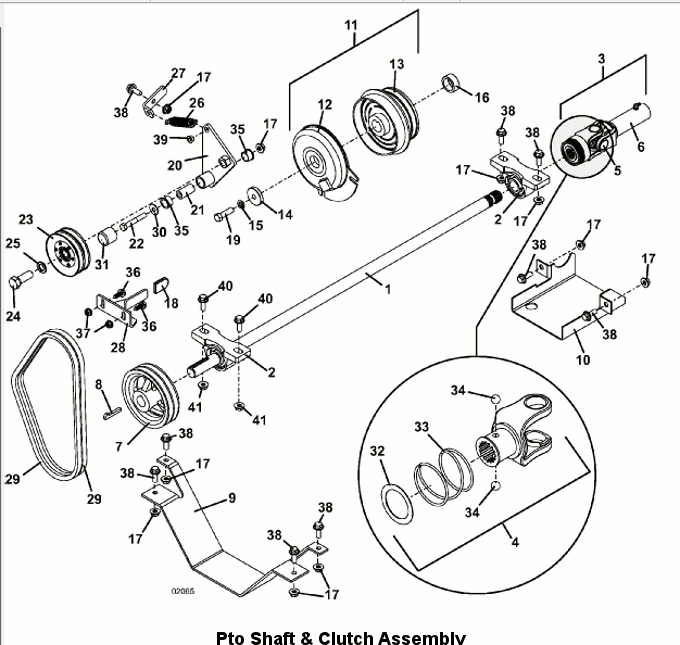

727K2 • PTO Shaft & Clutch Assembly

2007

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

37 Power Shaft

393759

2

Pillowblock SC Bearing

122044

3

UN Half Sleeve

398914

4

QD Splined Yoke

401019

5

Cross Bearing

121010

6

Yoke w/Sleeve

401017

7

Sheave

415650

8

Gib Square Key

281588

9

700 Sheave Guard

725256

10

PTO Shaft Shield

729287

11

Clutch Integral Plug

388769

12

Field Assembly w/Brake

388872

13

Armature & Rotor Assembly

388862

14

Washer

883803

15

Lock Washer

257422

16

Spacer

902588

17

Whiz Nut

253043

18

Clutch Bracket Cover

422088

19

Hex Bolt

243456

20

Idler Arm - 700 KC

824177

21

Pivot Shaft Bearing

881105

22

Hex Bolt

243355

23

Sheave

415610

24

Hex Bolt

243805

25

Washer Lock

257452

26

Spring Extension w/Swivel

283820

27

928 Idler Spring Bracket

732524

28

700 AC Anti-Rotation Bracket

725119

29

Belt

381914

30

Washer

257040

31

1.125 ID Vinyl Cap

422098

32

External Retainer

263660

33

Compression Spring

283525

34

Steel Ball

300014

35

Oilite Bearing

121756

36

Hex Flange Whiz Bolt

253192

37

Whiz Nut

253035

38

Whiz Flange Bolt

253203

39

Nylon Bearing

422520

40

Hex Bolt

243340

41

Washer

257040

-

Nut

254450

-

Lock Washer

257412
