Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

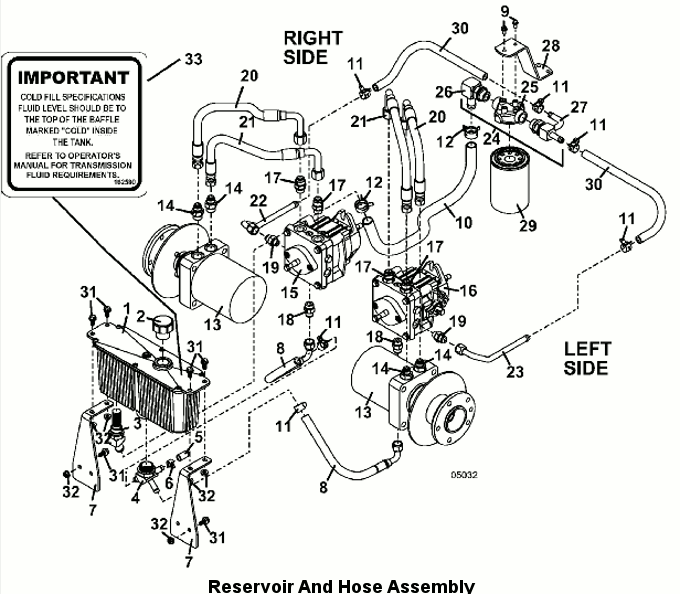

727K2 • Reservoir & Hose Assembly

2007

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Tank Assembly - Oil G2

101690

Tank Assembly - Oil G2 w/Strain

101692

2

Fill Cap

100760

3

Fitting - w/Diffuser

366571

4

Fitting - Triple Barb

366570

5

Cap - Manifold Fitting

422102

6

Clamp - Hose Spring

280263

7

Mount - Aluminum Oil Tank - RT

755128

8

Hose Assembly

424349

9

Hex Whiz Bolt

253173

10

.75 Hydraulic Hose

821804

11

Clamp - Hose Spring

280266

12

Spring Hose Clamp

280268

13

Wheel Motor with Hub

603602

14

O-Ring Adapter

360063

-

O-Ring

126527

-

O-Ring

126537

15

Hydro Pump - right

391463

-

Seal

125165

-

Square Charge Cover Seal Ring

130020

16

Hydro Pump - left

391462

-

Seal

125165

-

Square Charge Cover Seal Ring

130020

17

Fitting Adapter

360064

-

O-Ring

126529

-

O-Ring

126535

18

Steel O-Ring Boss Fitting

363832

19

Fitting Adapter

360081

20

Hose Assembly

424371

21

Hose Assembly

424372

22

Tube Assembly

424602

23

Tube Assembly

424603

24

Filter Base Assembly G2

101020

25

Filter Base

101027

26

12 Bead O-Ring Adapter

360076

27

O-Ring Adapter with 90 degree Elbow

360074

28

Oil Filter Base

733124

29

Transmission Oil Filter

100860

30

Hydraulic Hose

821799

31

Bolt Whiz Hex Flange

253192

32

Nut - Whiz

253035

33

Decal - Important Oil Spec

162580
