Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

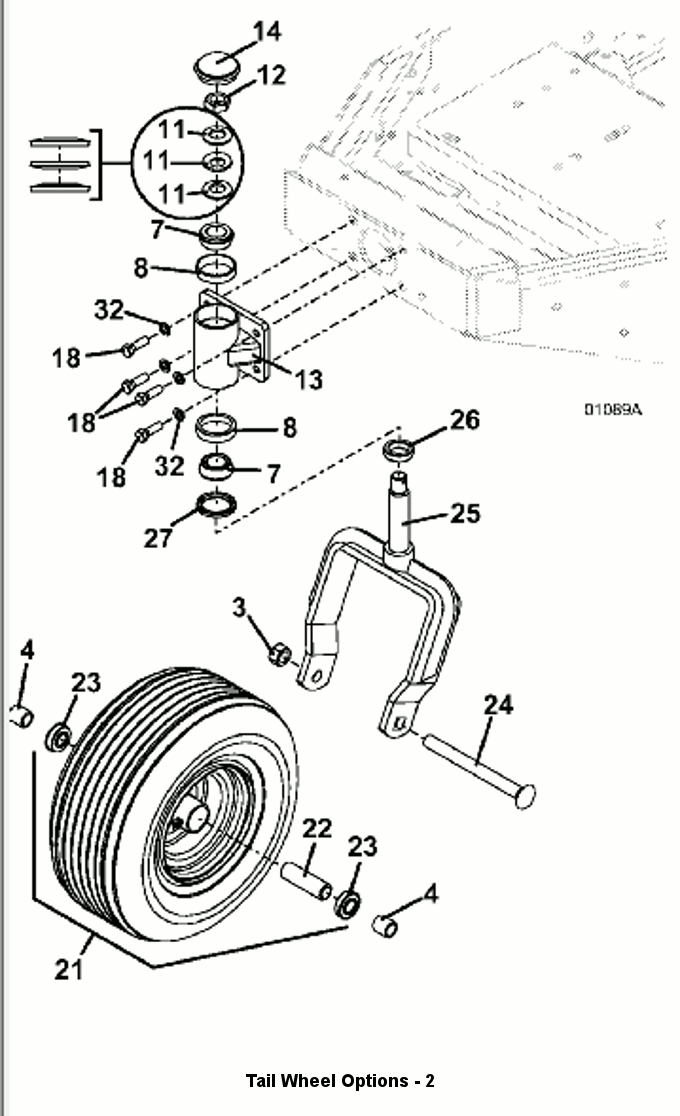

727K2 • Tail Wheel Options - 2

2007

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

3

Lock Nut

253970

4

Axle Spacer

902425

7

Taper Bearing

122522

8

Bearing Cup

123522

11

Spring Washer

257320

12

Nut - Jam Nylon - Toplock

254505

13

RR Fork Pivot Housing

604596

14

Domed Dust Cap

481434

18

GR8 Hex Bolt

243334

21

Wheel & Tire w/Bearing & Spacer

483865

22

Rear Wheel Bearing Spacer

902475

23

Ball Bearing

120050

24

Carriage Bolt

247725

25

Fork & Lock Nut Assembly

604365

26

Spacer

282615

27

Seal

125855

32

Lock Washer

257412
